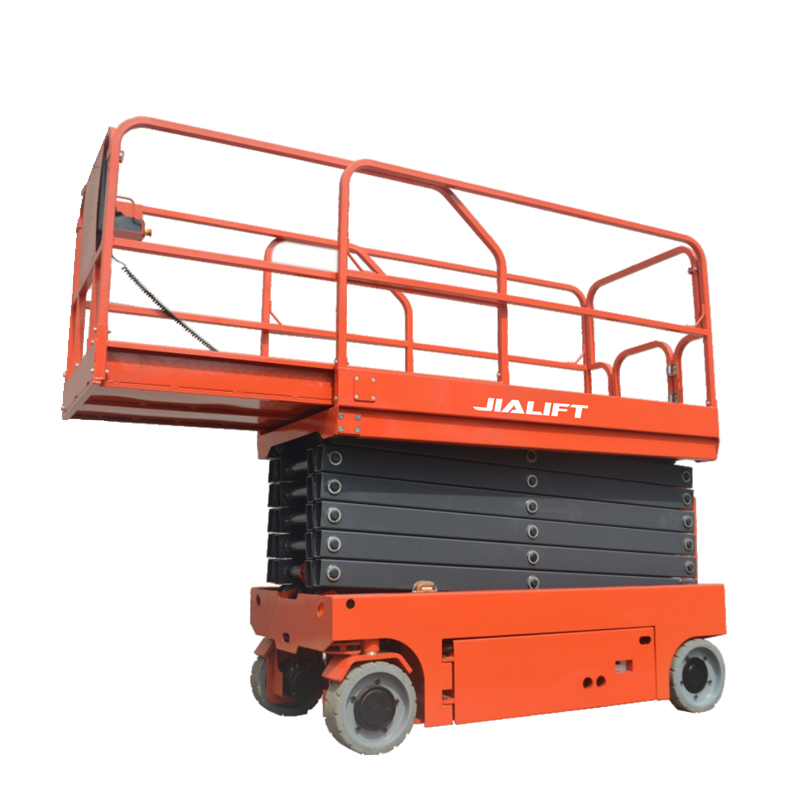

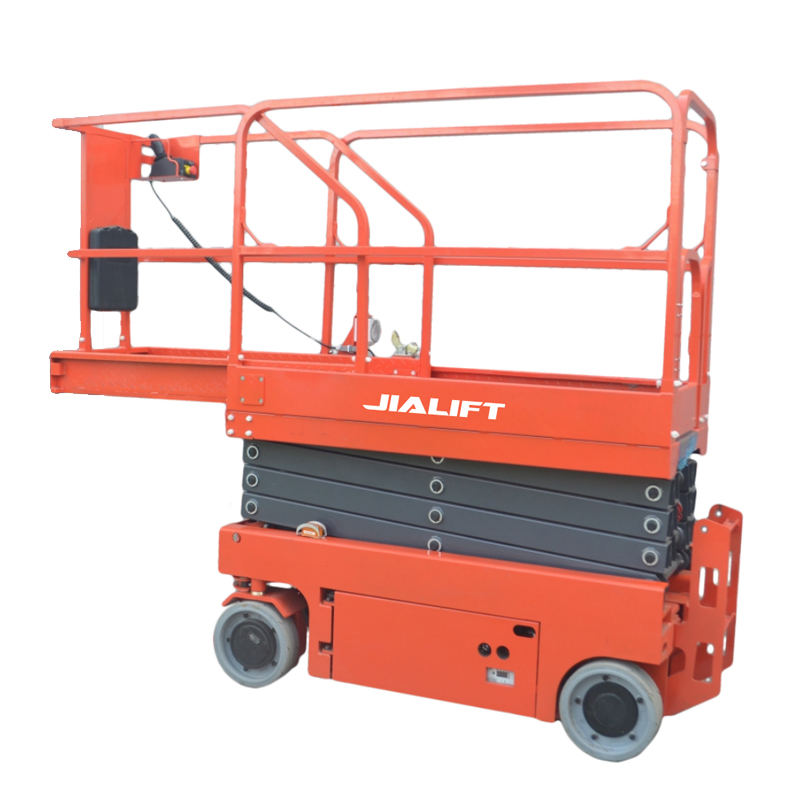

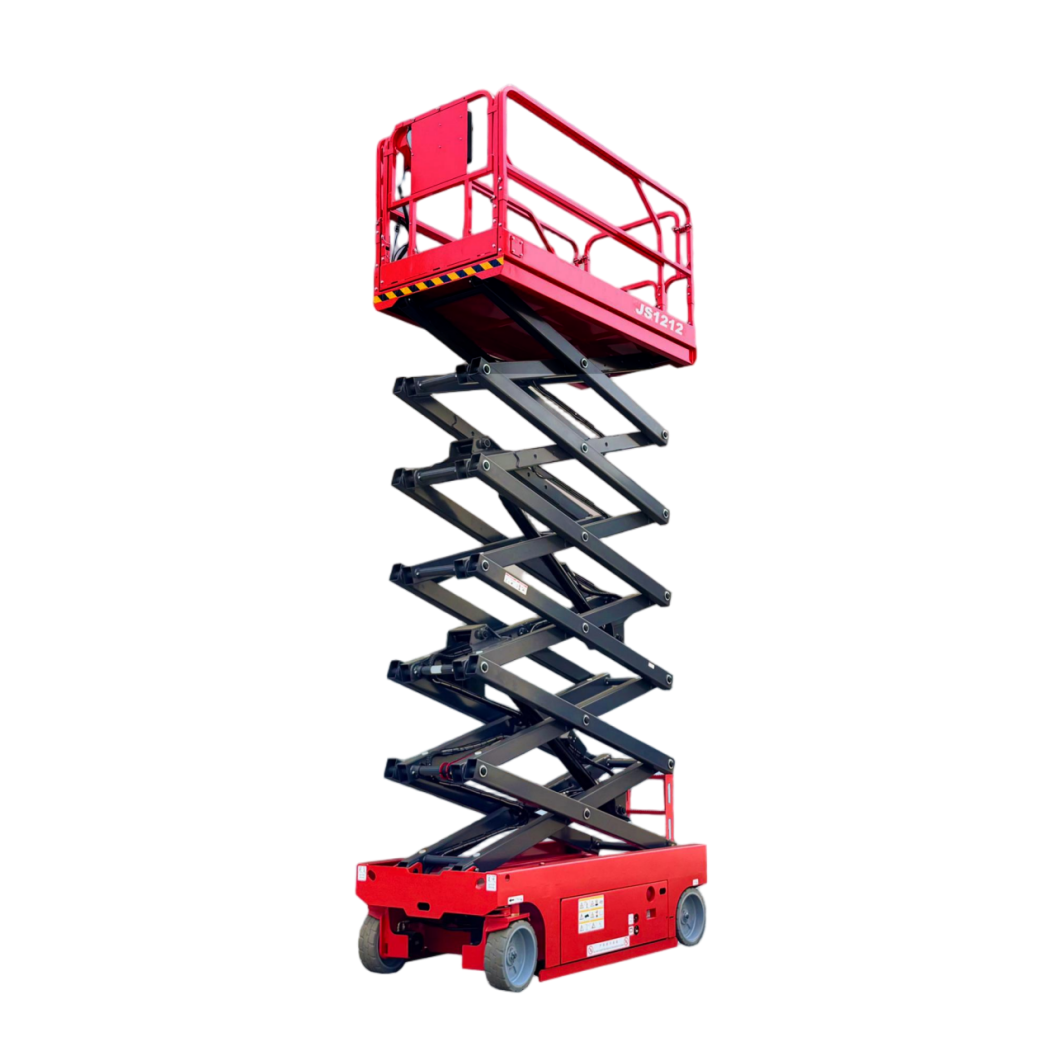

JS12 series

Electric, 450kg/320kg, 6*4V/180Ah, 6*4V/240Ah, Zero turning radius

Back Message

Description

JS Series Aerial work platform

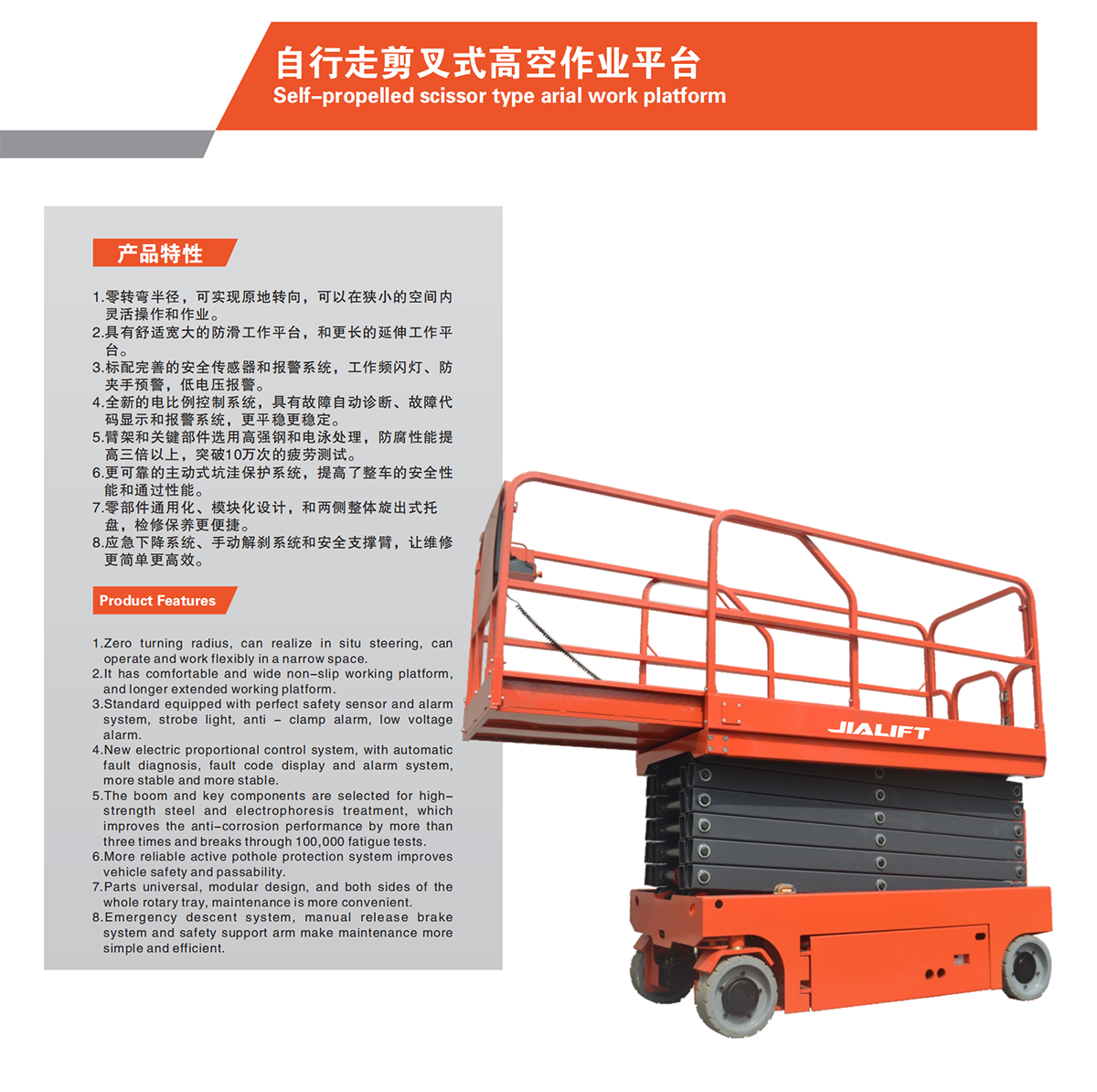

Product Features

1.Zero turning radius, can realize in situ steering,can operate and work flexibly in a narrow space.

2.It has comfortable and wide non-slip working platform, and longer extended working platform.

3.Standard equipped with perfect safety sensor and alarm system, strobe light,anti - clamp alarm, low voltage alarm.

4.New electric proportional control system, with automatic fault diagnosis, fault code display and alarm system, more stable and more stable.

5.The boom and key components are selected for high- strength steel and electrophoresis treatment, which improves the anti-corrosion performance by more than three times and breaks through 100,000 fatigue tests.

6.More reliable active pothole protection system improves vehicle safety and passability.

7.Parts universal,modular design, and both sides of the whole rotary tray, maintenance is more convenient.

8.Emergency descent system, manual release brake system and safety support arm make maintenance more simple and efficient.

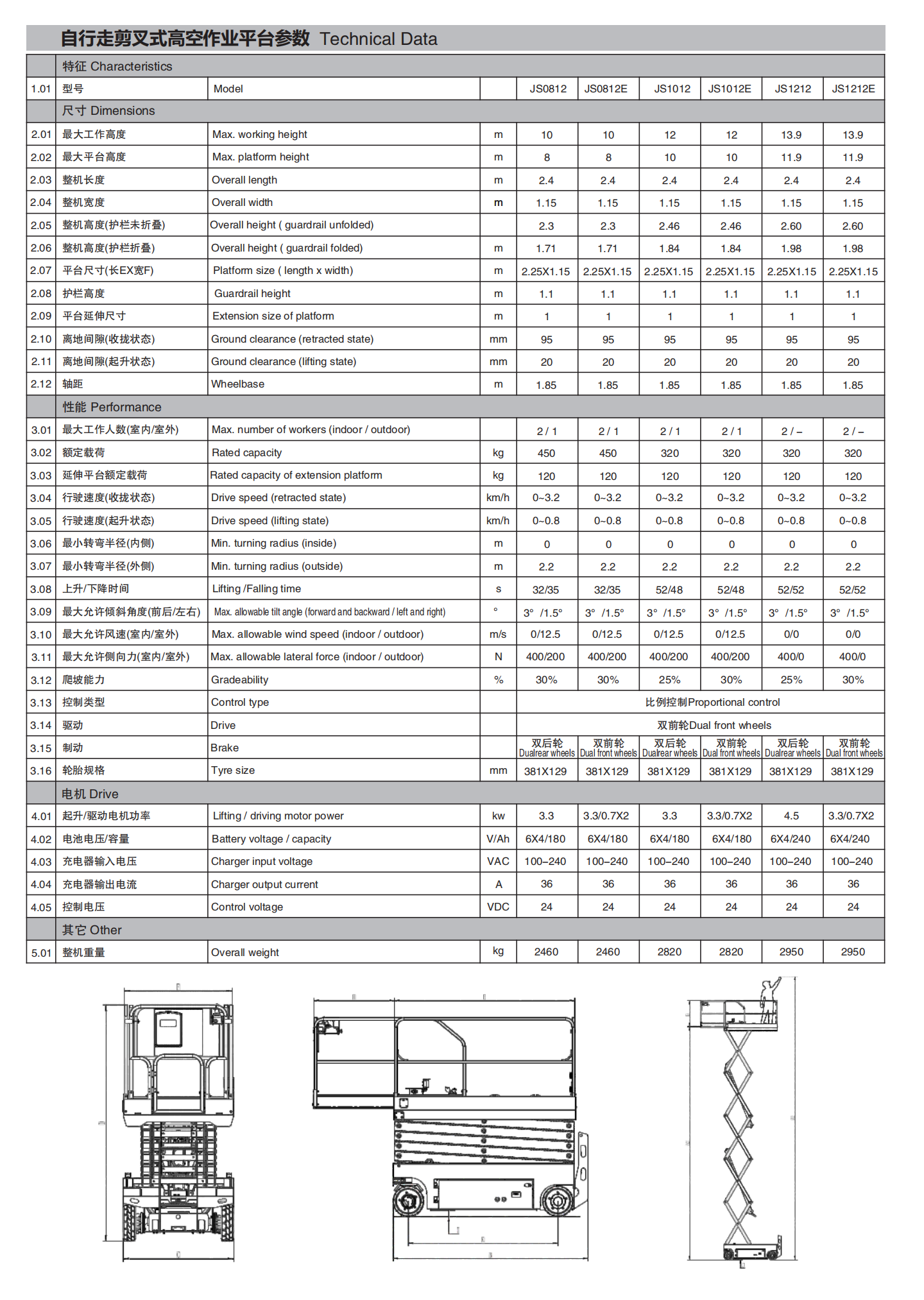

Technical Data

	Characteristics
1.01	Model		JS0812	JS1012	JS1212	JS0812E	JS1012E	JS1212E
Dimensions
2.01	Max. working height	m	10	12	13.9	10	12	13.9
2.02	Max. platform height	m	8	10	11.9	8	10	11.9
2.03	Overall length	m	2.4	2.4	2.4	2.4	2.4	2.4
2.04	Overall width	m	1.15	1.15	1.15	1.15	1.15	1.15
2.05	Overall height( guardrail unfolded)		2.3	2.46	2.6	2.3	2.46	2.6
2.06	Overall height ( guardrail folded)	m	1.71	1.84	1.98	1.71	1.84	1.98
2.07	Platform size(length x width)	m	2.25X1.15	2.25X1.15	2.25X1.15	2.25X1.15	2.25X1.15	2.25X1.15
2.08	Guardrail height	m	1.1	1.1	1.1	1.1	1.1	1.1
2.09	Extension size of platform	m	1	1	1	1	1	1
2.1	Ground clearance (retracted state)	mm	95	95	95	95	95	95
2.11	Ground clearance (lifting state)	mm	20	20	20	20	20	20
2.12	Wheelbase	m	1.85	1.85	1.85	1.85	1.85	1.85
	Performance
3.01	Max. number of workers (indoor/ outdoor)		2/1	2/1	2/-	2/1	2/1	2/-
3.02	Rated capacity	kg	450	320	320	450	320	320
3.03	Rated capacity of extension platform	kg	120	120	120	120	120	120
3.04	Drive speed (retracted state)	km/h	0~3.2	0~3.2	0~3.2	0~3.2	0~3.2	0~3.2
3.05	Drive speed (lifting state)	km/h	0~0.8	0~0.8	0~0.8	0~0.8	0~0.8	0~0.8
3.06	Min. turning radius (inside)	m	0	0	0	0	0	0
3.07	Min. turning radius (outside)	m	2.2	2.2	2.2	2.2	2.2	2.2
3.08	Lifting/Falling time	s	32/35	52/48	52/52	32/35	52/48	52/52
3.09	Max. allowable tilt angle (forward and backward /left an d right)	°	3°/1.5°	3°/1.5°	3°/1.5°	3°/1.5°	3°/1.5°	3°/1.5°
3.1	Max. allowable wind speed (indoor /outdoor)	m/s	0/12.5	0/12.5	0/0	0/12.5	0/12.5	0/0
3.11	Max. allowable lateral force (indoor / outdoor)	N	400/200	400/200	400/0	400/200	400/200	400/0
3.12	Gradeability	%	30%	25%	25%	30%	30%	30%
3.13	Control type		Proportional control
3.14	Drive		Dual front wheels
3.15	Brake		Dualrear wheels	Dualrear wheels	Dualrear wheels	Dual front wheels	Dual front wheels	Dual front wheels
3.16	Tyre size	mm	381X129	381X129	381X129	381X129	381X129	381X129
	Drive
4.01	Lifting / driving motor power	kw	3.3	3.3	4.5	3.3/0.7X2	3.3/0.7X2	3.3/0.7X2
4.02	Battery voltage / capacity	V/Ah	6X4/180	6X4/180	6X4/240	6X4/180	6X4/180	6X4/240
4.03	Charger input voltage	VAC	100-240	100-240	100-240	100-240	100-240	100-240
4.04	Charger output current	A	36	36	36	36	36	36
4.05	Control voltage	VDC	24	24	24	24	24	24
	Other
5.01	Overall weight	kg	2460	2820	2950	2460	2820	2950
