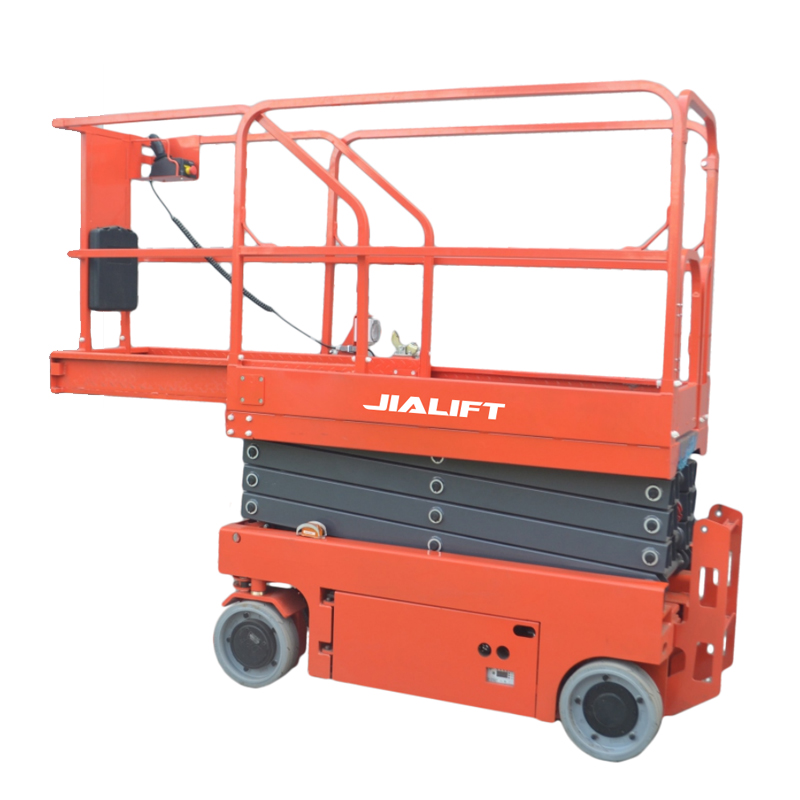

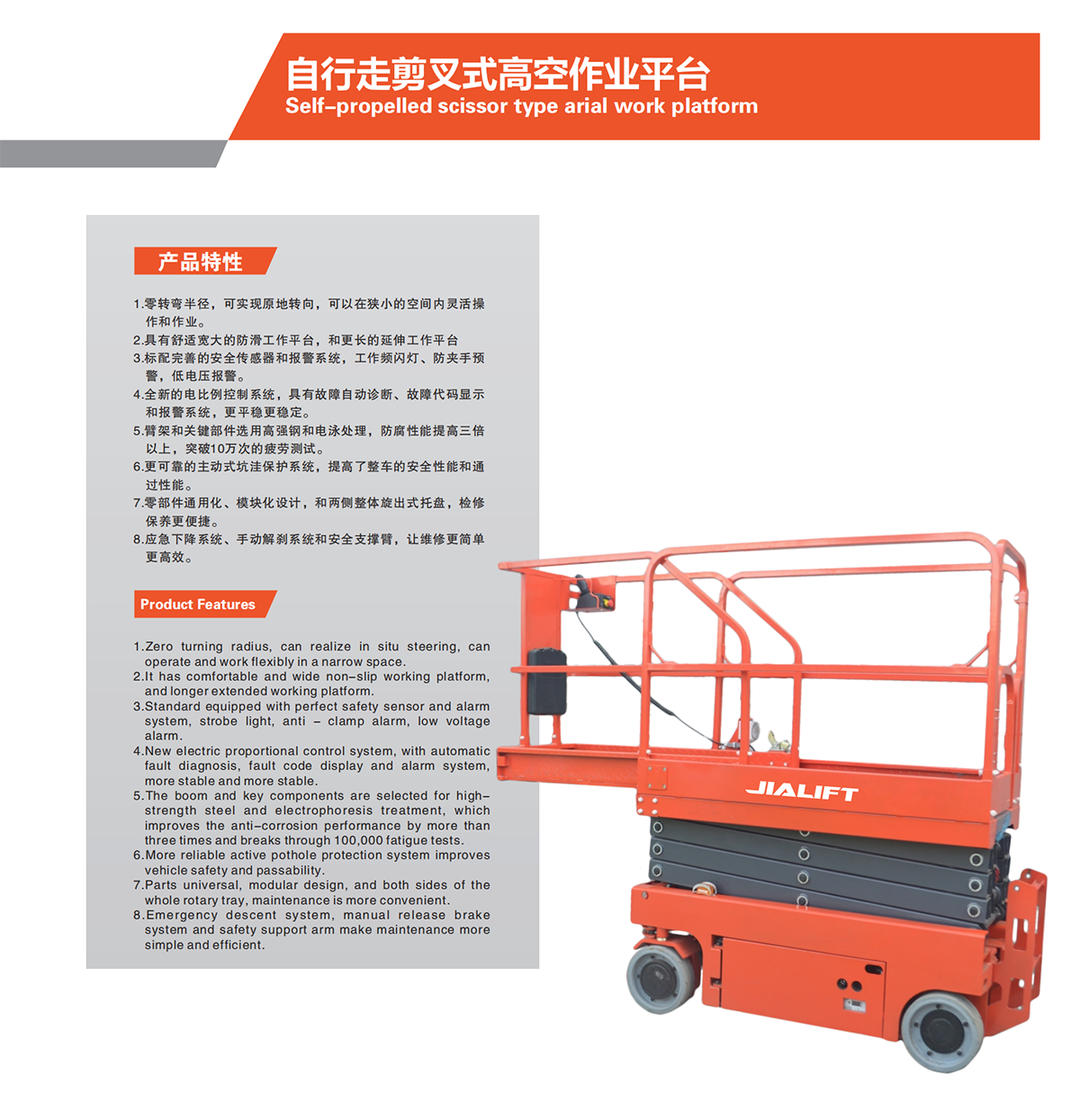

Product Features
1.Zero turning radius, can achieve in situ steering, can be flexible operation and work in a small space
2.With comfortable and wide non-slip work platform, and longer extension work platform.
3.Standard equipped with perfect safety sensor and alarm system, working strobe light, anti-pinch hand warning, low voltage alarm.
4.New electric proportional control system, with automatic fault diagnosis, fault
code display and alarm system, more stable and stable.
5.The boom and key components are made of high-strength steel and
electrophoretic treatment, which increases the anti-corrosion performance by more than three times and breaks through 100,000 fatigue tests.
6.The more reliable active pothole protection system improves the safety and
passing performance of the vehicle.
7.Split boom cylinder control valve design and tubing anti-burst system make more professional and intimate protection everywhere.
8.The better matching of electrical and hydraulic systems greatly improves the number of lifts and longer endurance.

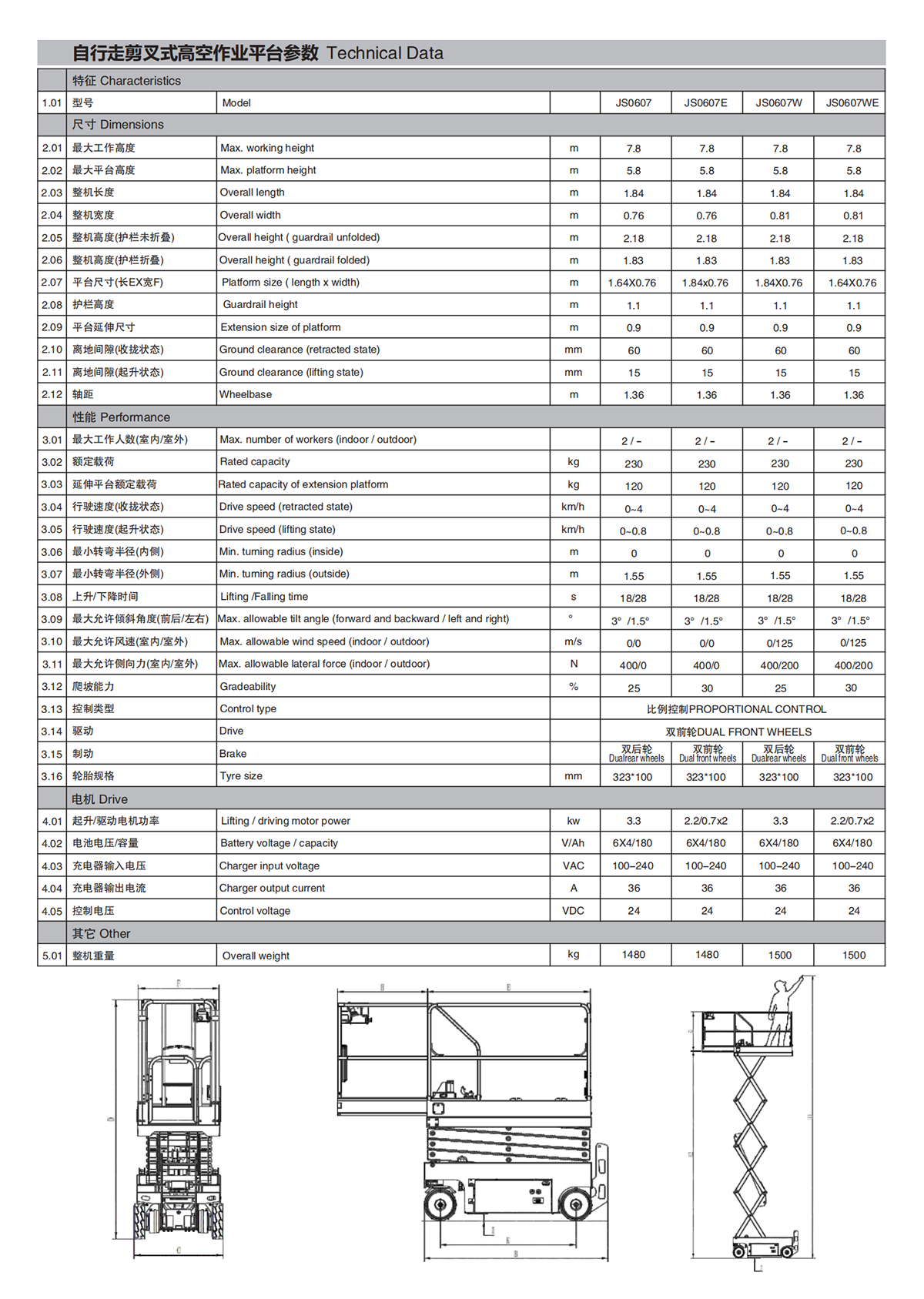

Technical Data
| Characteristics | ||||||
| 1.01 | Model | JS0607 | JS0607E | JS0607W | JS0607WE | |
| Dimensions | ||||||
| 2.01 | Max. working height | m | 7.8 | 7.8 | 7.8 | 7.8 |
| 2.02 | Max. platform height | m | 5.8 | 5.8 | 5.8 | 5.8 |
| 2.03 | Overall length | m | 1.84 | 1.84 | 1.84 | 1.84 |
| 2.04 | Overall width | m | 0.76 | 0.76 | 0.81 | 0.81 |
| 2.05 | Overall height(guardrail unfolded) | m | 2.18 | 2.18 | 2.18 | 2.18 |
| 2.06 | Overall height ( guardrail folded) | m | 1.83 | 1.83 | 1.83 | 1.83 |
| 2.07 | Platform size(length x width) | m | 1.64X0.76 | 1.84x0.76 | 1.84X0.76 | 1.64X0.76 |
| 2.08 | Guardrail height | m | 1.1 | 1.1 | 1.1 | 1.1 |
| 2.09 | Extension size of platform | m | 0.9 | 0.9 | 0.9 | 0.9 |
| 2.10 | Ground clearance (retracted state) | mm | 60 | 60 | 60 | 60 |
| 2.11 | Ground clearance (lifting state) | mm | 15 | 15 | 15 | 15 |
| 2.12 | Wheelbase | m | 1.36 | 1.36 | 1.36 | 1.36 |
| Performance | ||||||
| 3.01 | Max. number of workers (indoor / outdoor) | 21- | 21- | 21- | 21- | |
| 3.02 | Rated capacity | kg | 230 | 230 | 230 | 230 |
| 3.03 | Rated capacity of extension platform | kg | 120 | 120 | 120 | 120 |
| 3.04 | Drive speed (retracted state) | km/h | 0~4 | 0~4 | 0~4 | 0~4 |
| 3.05 | Drive speed (lifting state) | km/h | 0~0.8 | 0~0.8 | 0~0.8 | 0~0.8 |
| 3.06 | Min. tuming radius (inside) | m | 0 | 0 | 0 | 0 |
| 3.07 | Min. tuming radius (outside) | m | 1.55 | 1.55 | 1.55 | 1.55 |
| 3.08 | Lifting /Falling time | S | 18/28 | 18/28 | 18/28 | 18/28 |
| 3.09 | Max. allowable tilt angle (forward and backward /left and right) | 。 | 3°/1.5° | 3°/1.5° | 3°/1.5° | 3°/1.5° |
| 3.10 | Max. allowable wind speed (indoor / outdoor) | m/s | 0/0 | 0/0 | 0/125 | 0/125 |
| 3.11 | Max. allowable lateral force (indoor / outdoor) | N | 400/0 | 400/0 | 400/200 | 400/200 |
| 3.12 | Gradeability | % | 25 | 30 | 25 | 30 |
| 3.13 | Control type | PROPORTIONAL CONTROL | ||||
| 3.14 | Drive | DUAL FRONT WHEELS | ||||
| 3.15 | Brake | Dualrear wheels | Dual front wheels | Dualrear wheels | Dualfront wheels | |
| 3.16 | Tyre size | mm | 323*100 | 323*100 | 323*100 | 323*100 |
| Drive | ||||||
| 4.01 | Lifting / driving motor power | kw | 3.3 | 2.2/0.7x2 | 3.3 | 2.2/0.7x2 |
| 4.02 | Battery voltage / capacity | V/Ah | 6X4/180 | 6X4/180 | 6X4/180 | 6X4/180 |
| 4.03 | Charger input voltage | VAC | 100-240 | 100-240 | 100-240 | 100-240 |
| 4.04 | Charger output current | A | 36 | 36 | 36 | 36 |
| 4.05 | Control voltage | VDC | 24 | 24 | 24 | 24 |
| Other | ||||||
| 5.01 | Overall weight | kg | 1480 | 1480 | 1500 | 1500 |
