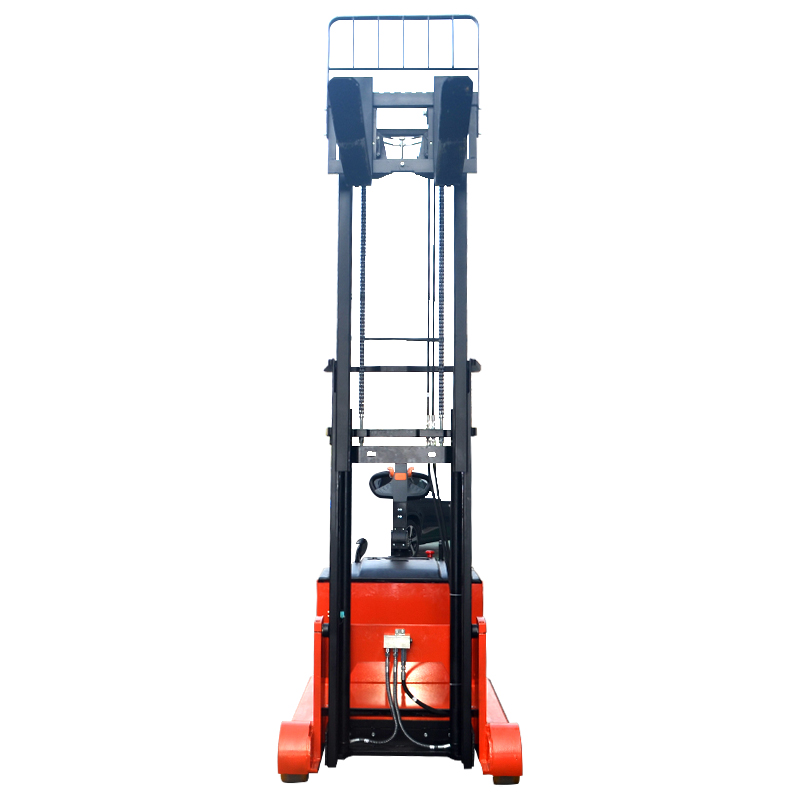

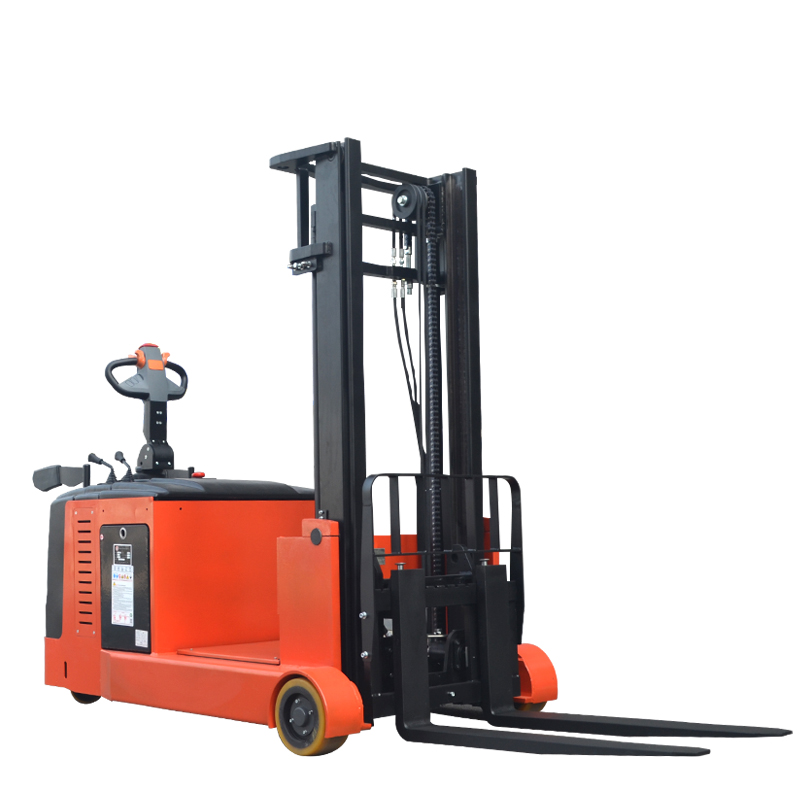

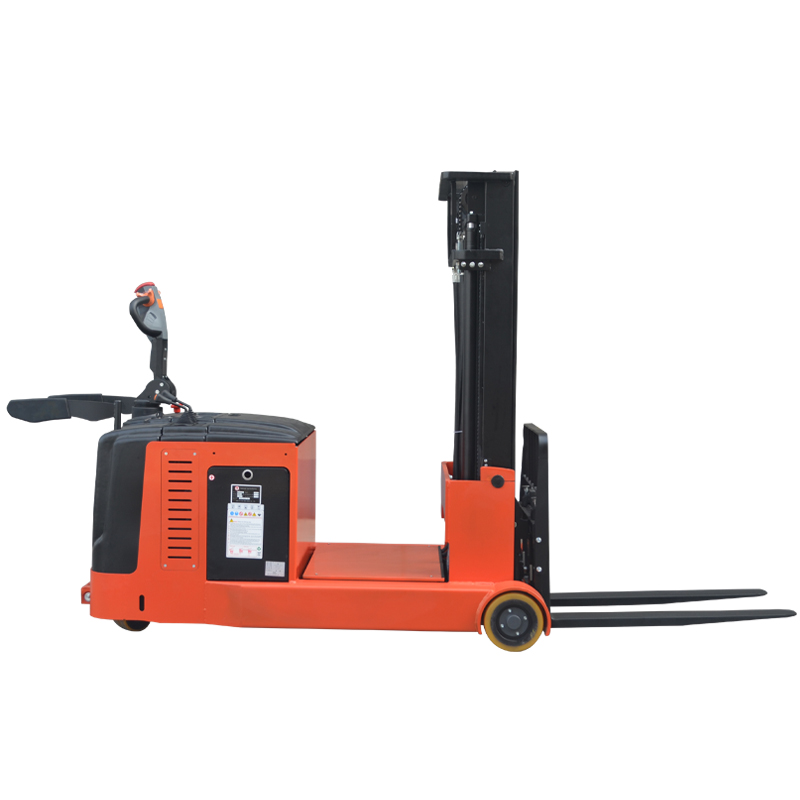

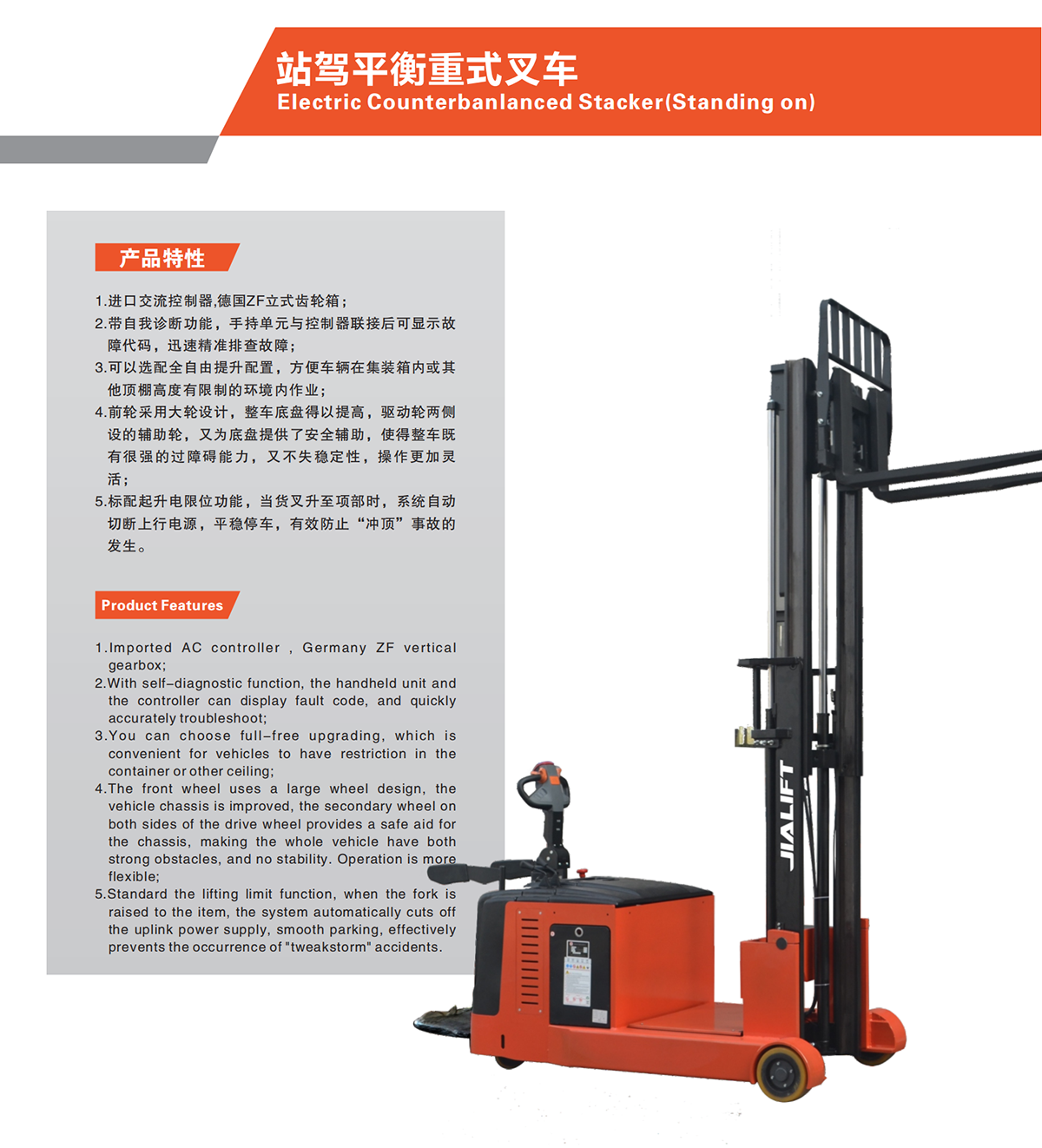

1.lmported AC controller ,Germany ZF verticalgearbox;
2.With self-diagnostic function, the handheld unit andthe controller can display fault code, and quicklyaccurately troubleshoot;
3.You can choose full-free upgrading, which isconvenient for vehicles to have restriction in thecontainer or other ceiling;
4.The front wheel uses a large wheel design, thevehicle chassis is improved, the secondary wheel onboth sides of the drive wheel provides a safe aid forthe chassis, making the whole vehicle have bothstrong obstacles, and no stability. Operation is moreflexible;
5.Standard the lifting limit function, when the fork israised to the item, the system automatically cuts offthe uplink power supply, smooth parking, effectivelyprevents the occurrence of"tweakstorm" accidents.

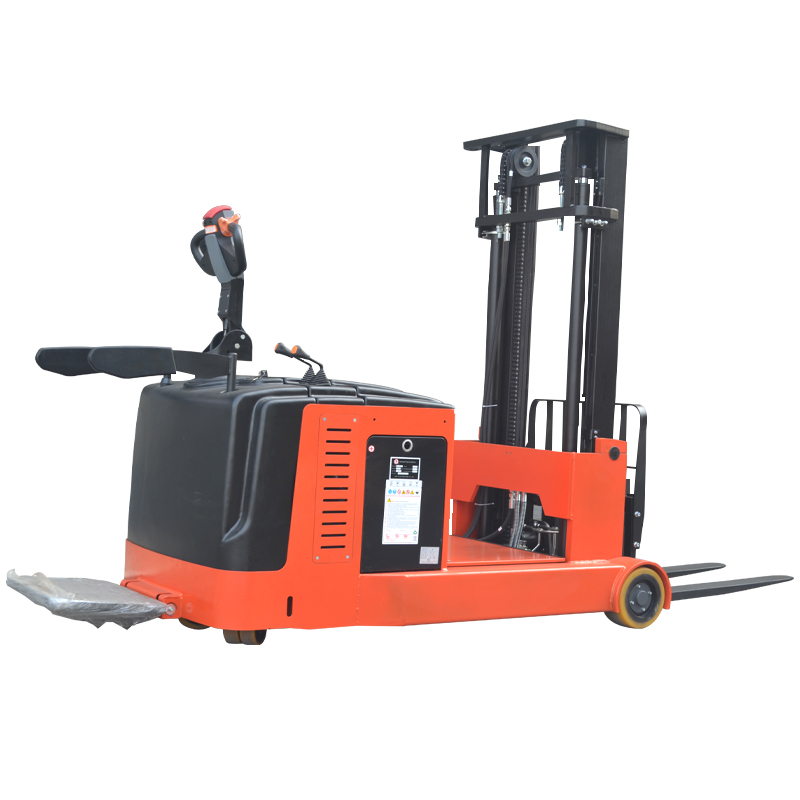

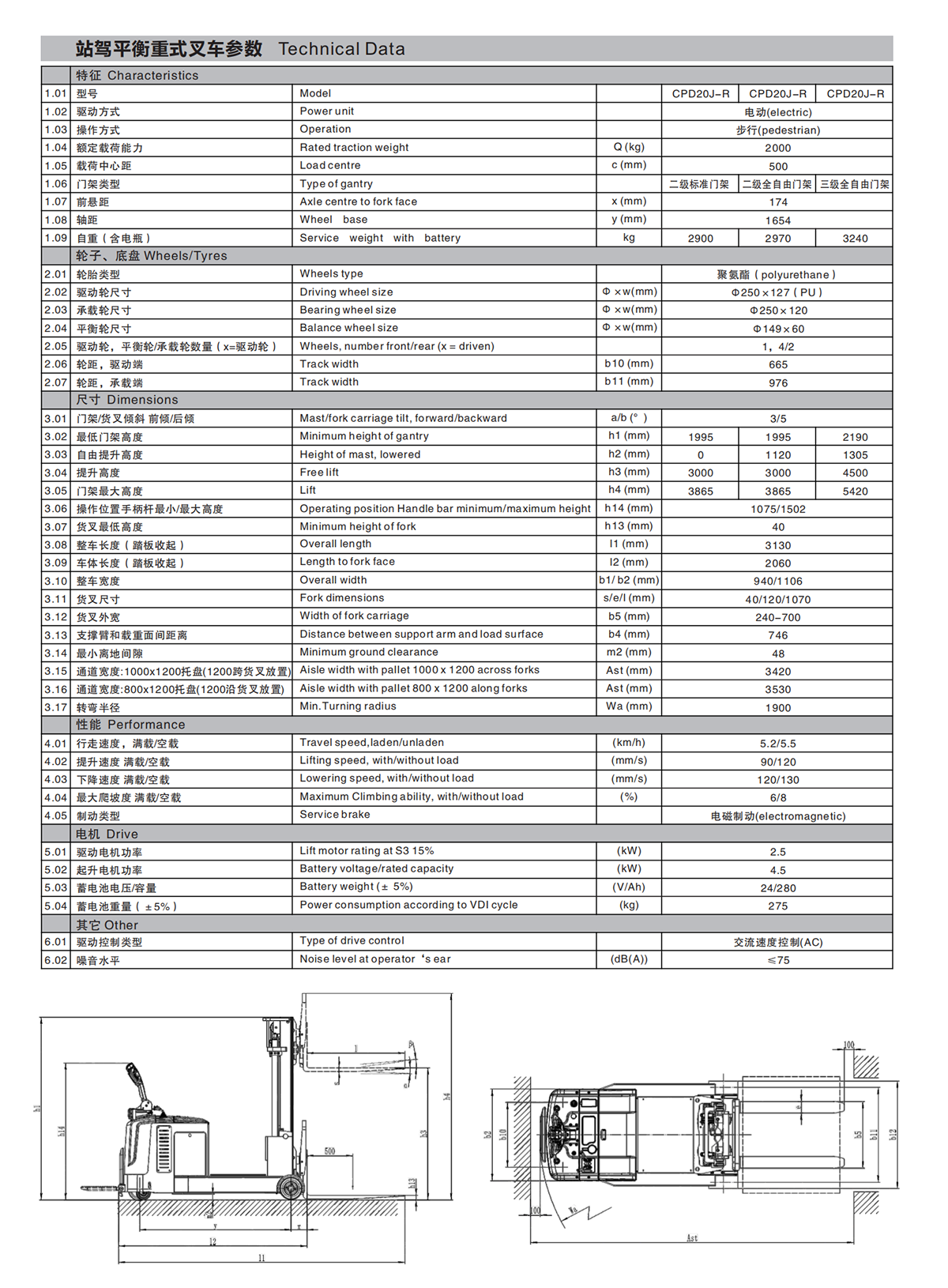

| CPD20J-R | ||||||||||||
| distinguishing mark | ||||||||||||
| 1.1 | Manufacturer | JALIFT | ||||||||||
| 1.2 | Manufacturer's type designation | CPD20J-R | CPD20J-R | CPD20J-R | ||||||||
| 1.3 | Drive | electric | electric | electric | ||||||||
| 1.4 | Operator type | pedestrian | pedestrian | pedestrian | ||||||||
| 1.5 | Load capacity | Q (kg) | 2000 | 2000 | 2000 | |||||||
| 1.6 | Load center distance | c (mm) | 500 | 500 | 500 | |||||||
| 1.8 | centre of drive axle to fork | x (mm) | 174 | 174 | 174 | |||||||
| 1.9 | Wheelbase | y (mm) | 1654 | 1654 | 1654 | |||||||
| Weight | ||||||||||||
| 2.1 | Service weight （include battery） | kg | 2580 | 2970 | 3240 | |||||||
| 2.2 | Axle loading,laden front/rear | kg | 3981/599 | 4324/646 | 4559/681 | |||||||
| 2.3 | Axle loading,unladen front/rear | kg | 1185/1395 | 1365/1605 | 1520/1720 | |||||||
| Types,Chassis | ||||||||||||
| 3.1 | Tyre type driving wheels/loading wheels | polyurethane | polyurethane | polyurethane | ||||||||
| 3.2 | Tyre size,front（diameter×width） | Φ×w(mm) | Φ250×120 | Φ250×120 | Φ250×120 | |||||||
| 3.3 | Tyre size ，rear（diameter×width） | Φ×w(mm) | Φ250×127（PU） | Φ250×127（PU） | Φ250×127（PU） | |||||||
| 3.5 | Wheels, number driving，caster/loading (x=drive wheels) | 1，4/2 | 1，4/2 | 1，4/2 | ||||||||
| 3.6 | Tread,front | b11 (mm) | 976 | 976 | 976 | |||||||
| 3.7 | Thread,rear | b10 (mm) | 0 | 0 | 0 | |||||||
| Dimensions | ||||||||||||
| 4.1 | Mast/fork carriage tilt, forward/backward | a/b (°) | 3/5 | 3/5 | 3/5 | |||||||
| 4.2 | Height,mast lowered | h1 (mm) | 1995 | 2245 | 2495 | 2190 | 2357 | 2524 | 2690 | 1995 | 2245 | 2495 |
| 4.3 | Free lift | h2 (mm) | 0 | 0 | 0 | 1305 | 1470 | 1639 | 1805 | 1120 | 1370 | 1620 |
| 4.4 | Lift height | h3 (mm) | 3000 | 3500 | 4000 | 4500 | 5000 | 5500 | 6000 | 3000 | 3500 | 4000 |
| 4.5 | Maximum height of gantry | h4 (mm) | 3865 | 4365 | 4865 | 5420 | 5920 | 6420 | 6920 | 3865 | 4365 | 4865 |
| 4.6 | Lowered height | h13 (mm) | 40 | 40 | 40 | |||||||
| 4.8 | stand height | h7 (mm) | 145 | 145 | 145 | |||||||
| 4.9 | Height of tiller in drive position min./max. | h14 (mm) | 1075/1502 | 1075/1502 | 1075/1502 | |||||||
| 4.19 | Overall length | l1 (mm) | 3130 | 3130 | 3130 | |||||||
| 4.20 | Length to face of forks | l2 (mm) | 2060 | 2060 | 2060 | |||||||
| 4.21 | Overall width | b1/ b2 (mm) | 940/1106 | 940/1106 | 940/1106 | |||||||
| 4.22 | Fork dimensions | s/e/l (mm) | 40/120/1070 | 40/120/1070 | 40/120/1070 | |||||||
| 4.25 | Distance between fork-arms | b5 (mm) | 240-700 | 240-700 | 240-700 | |||||||
| 4.32 | Ground clearance, center of wheelbase | m2 (mm) | 48 | 48 | 48 | |||||||
| 4.33 | Aisle width for pallets 1000 × 1200 crossways | Ast (mm) | 3420 | 3420 | 3420 | |||||||
| 4.34 | Aisle width for pallets 800 × 1200 lengthways | Ast (mm) | 3530 | 3530 | 3530 | |||||||
| 4.35 | Turning radius | Wa (mm) | 1900 | 1900 | 1900 | |||||||
| Performance data | ||||||||||||
| 5.1 | Travel speed, laden/ unladen | (km/h) | 5.2/5.5 | 5.2/5.5 | 5.2/5.5 | |||||||
| 5.2 | Lifting speed, laden/ unladen | (mm/s) | 90/120 | 90/120 | 90/120 | |||||||
| 5.3 | Lowering speed, laden/ unladen | (mm/s) | 120/130 | 120/130 | 120/130 | |||||||
| 5.7 | Max. gradeability, laden/unladen | (%) | 6/8 | 6/8 | 6/8 | |||||||
| 5.10 | Service brake type | electromagnetic | electromagnetic | electromagnetic | ||||||||
| Electric-engine | ||||||||||||
| 6.1 | Drive motor rating S2 60 min | (kW) | 3.0 | 3.0 | 3.0 | |||||||
| 6.2 | Lift motor rating at S3 15% | (kW) | 4.5 | 4.5 | 4.5 | |||||||
| 6.3 | Battery acc. To DIN 43531/35/36 A.B.C,no | no | no | no | ||||||||
| 6.4 | Battery voltage/nominal capacity K5 | (V/Ah) | 24/280 | 24/280 | 24/280 | |||||||
| 6.5 | Battery weight | (kg) | 275 | 275 | 275 | |||||||
| Addition data | ||||||||||||
| 8.1 | Type of drive control | AC | AC | AC | ||||||||
| 8.4 | Sound pressure level at the driver’s ear | (dB(A)) | ≤75 | ≤75 | ≤75 | |||||||
