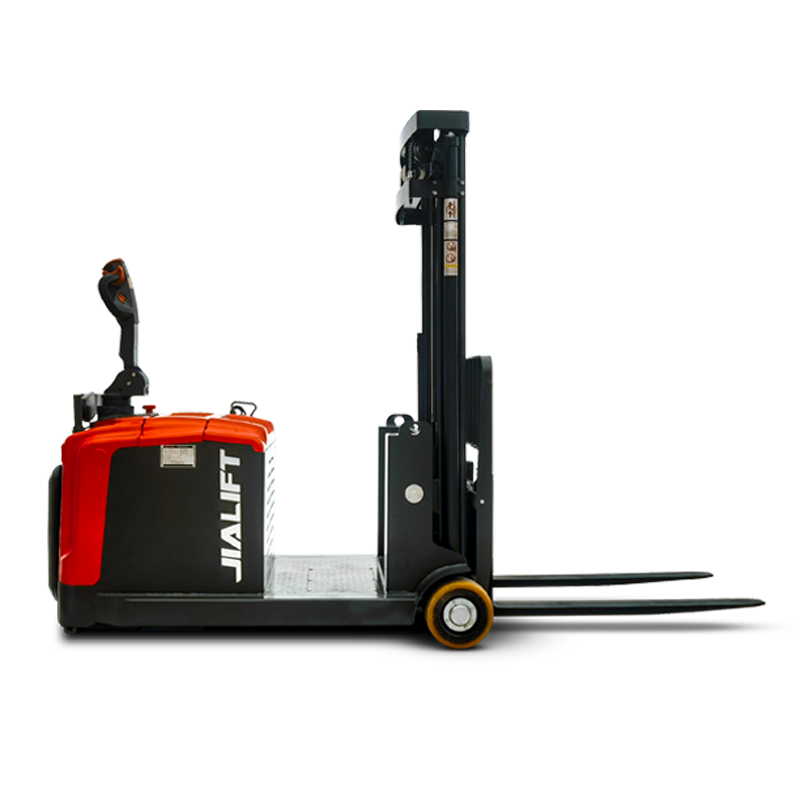

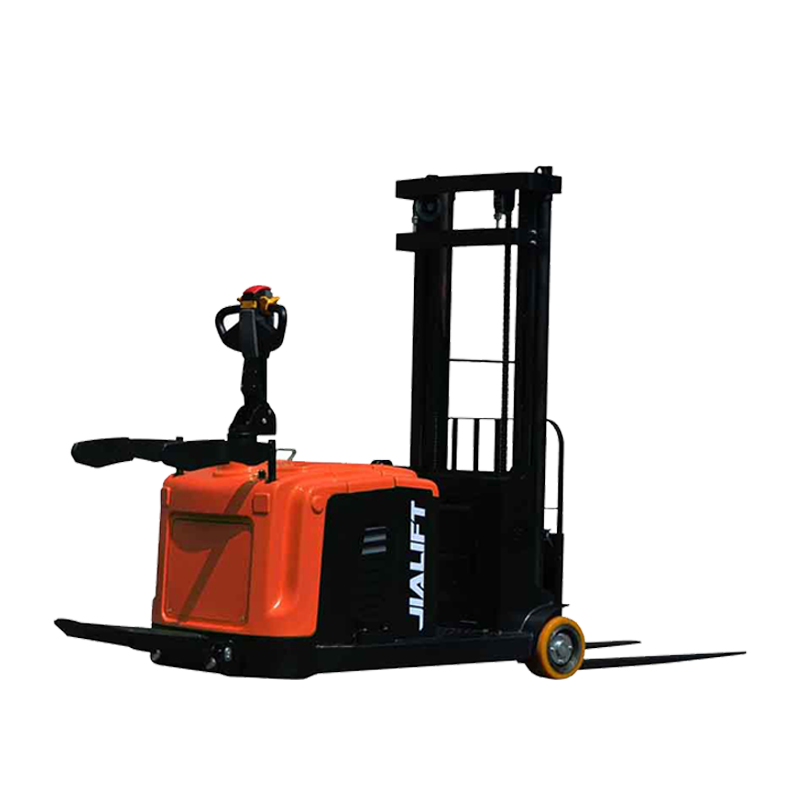

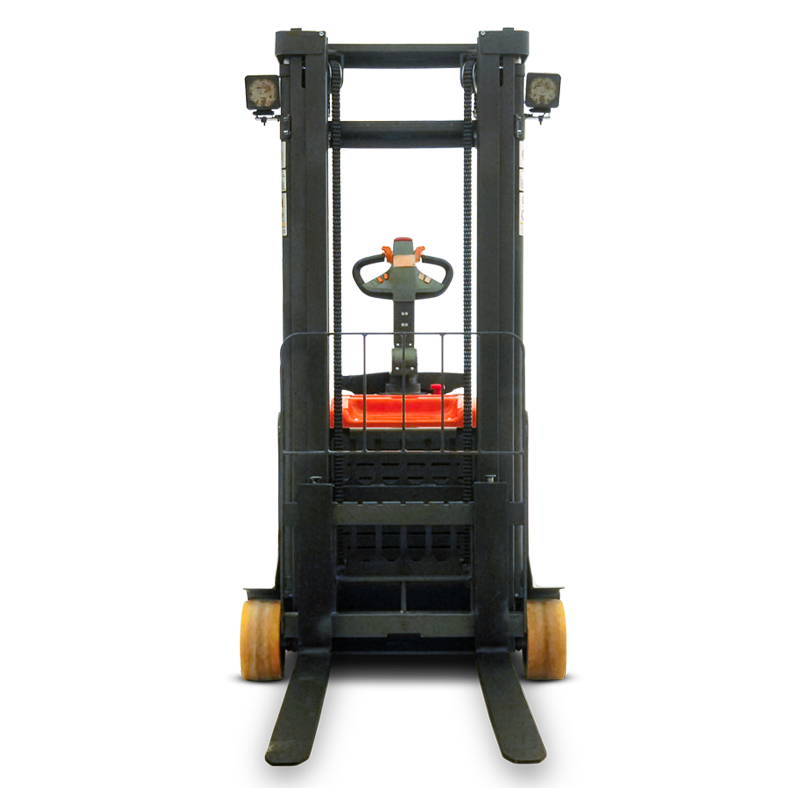

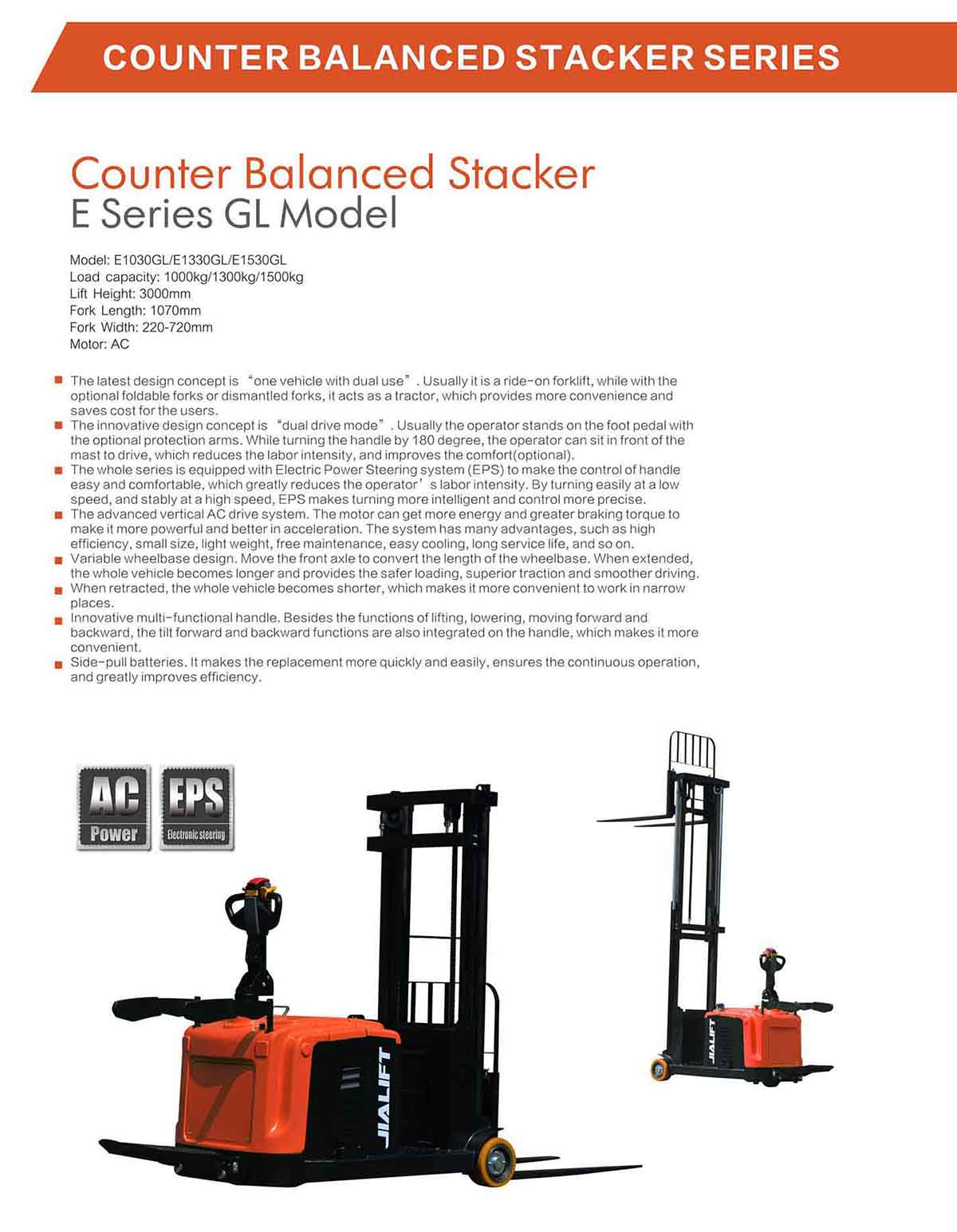

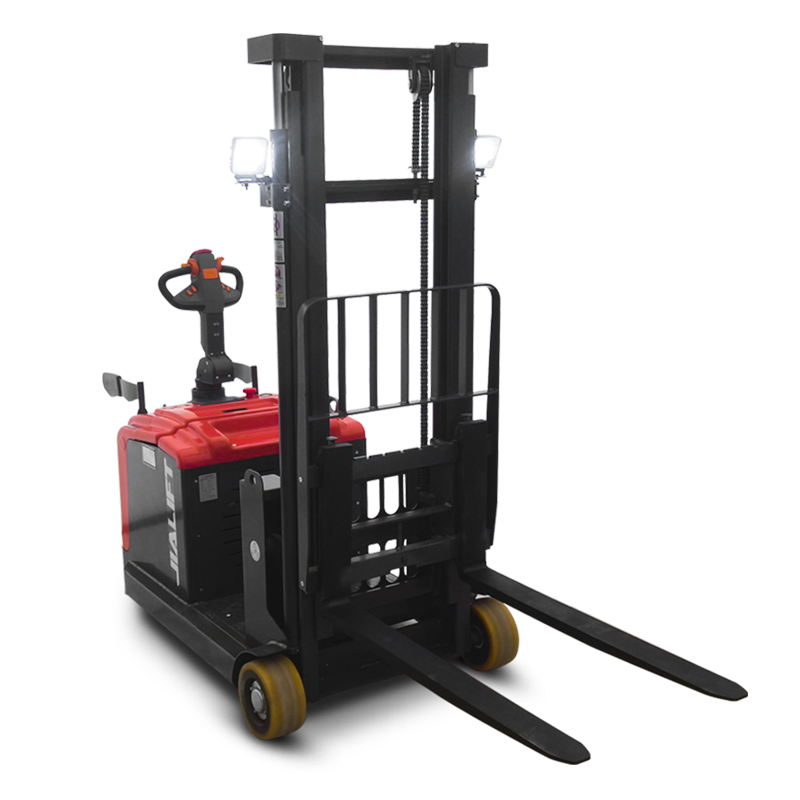

Counter Balanced StackerE Series GL Model
Model: E1030GL/E1330GL/E1530GL
Load capacity:1000kg/1300kg/1500kg
Lift Height: 3000mm
Fork Length:1070mm
Fork Width: 220-720mmMotor: AC
The latest design concept is "one vehicle with dual use" . Usually it is a ride-on forklift, while with theoptional foldable forks or dismantled forks, it acls as a tractor, which provides more convenience andsaves cost for the users.
The innovative design concept is "dual drive mode" .Usually the operator stands on the foot pedal withthe optional proteclion arms. While turning the handle by 180 degree, the operator can sit in front of themast to dirive, which reduces the laborintensity, and improves the comfort(optional).The whole serles is equipped with Electric Power Steering system (EPS) to make the control of handleeasy and comfortable, which greatly reduces the operator’s laborintensily. By lurning easily at a lowspeed, and stably at a high speed, EPS makes turning more intelligent and control more precise.The advanced vertical AC drive system. The motor can get more energy and greater braking torque tomake it more powerful and belter in acceleration. The system has many advantages, such as highefficiency, small size, light weight, free maintenance, easy cooling, long service life, and so on.Variable wheelbase design, Move the front axle to convert the length of the wheelbase, When extended.the whole vehicle becomes longer and provides the safer loading, superior traction and smoother drivingWhen retracted, the whole vehicle becomes shorter, which makes it more convenient to work in narrowplaces.
innovative multil-functional handle. Besides the functions of lifting, lowering, moving forward andbackward, the tilt forward and backward functions are also integrated on the handle, which makes it moreconvenient.Side-pull batteries. lt makes the replacement more quickly and easily, ensures the continuous operation.and qreatlyimproves efficiency.

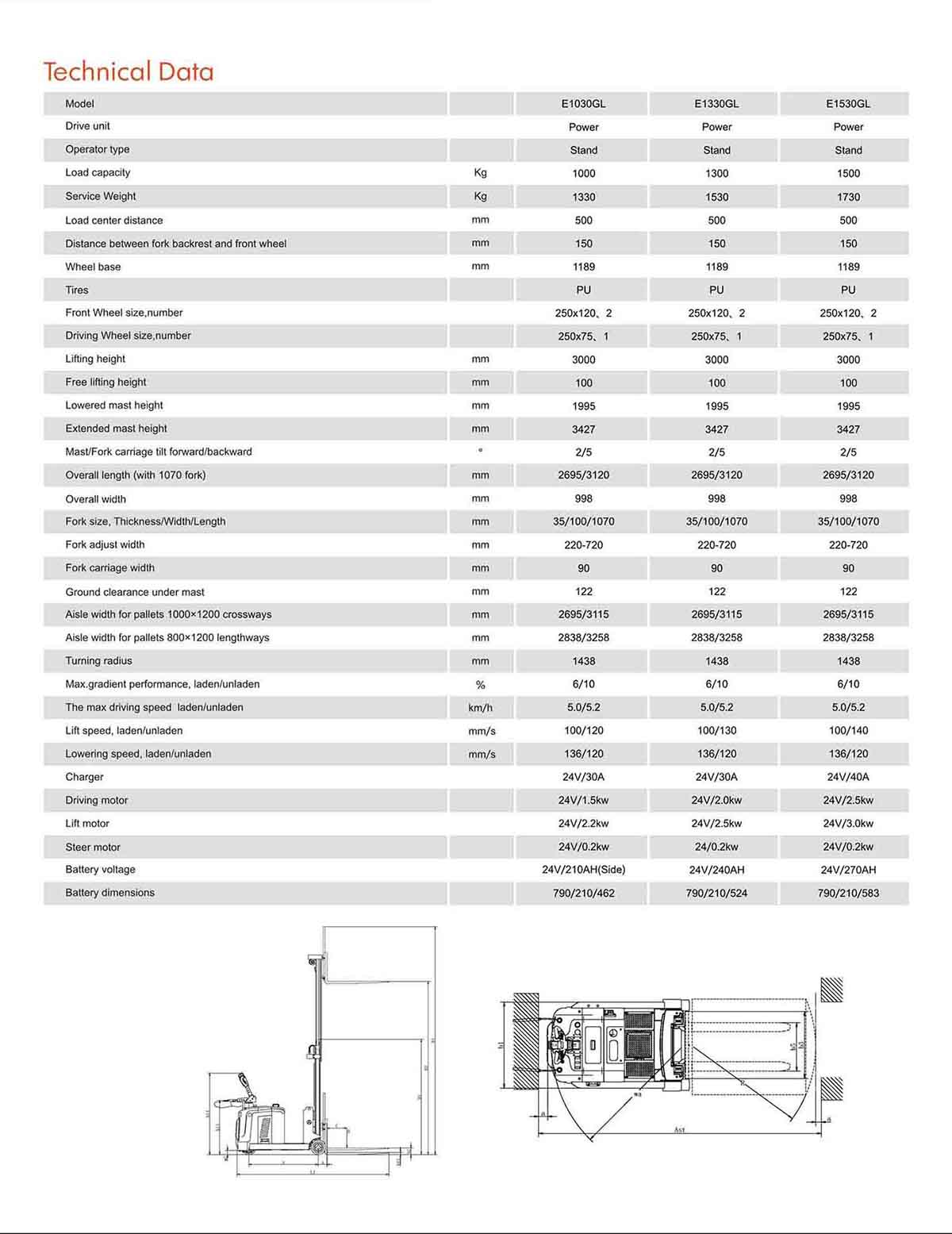

Technical Data:
distinguishing mark | |||||
1.1 | Manufacturer | JIALIFT | |||
1.2 | Manufacturer's type designation | E1030GL | E1330GL | E1530GL | |
1.3 | Drive | Electric | |||
1.4 | Operator type | Standing | |||
1.5 | Load capacity | Q(kg) | 1000 | 1300 | 1500 |
1.6 | Load center distance | c (mm) | 500 | ||
1.8 | centre of drive axle to fork | x (mm) | 150 | ||
1.9 | Wheelbase | y (mm) | 1203 | 1203 | 1330 |
Weight | |||||
2.1 | Service weight (include battery) | kg | 1590 | 1680 | 1740 |
2.2 | Axle loading,laden front/rear | kg | 2110/480 | 2410/570 | 2920/320 |
2.3 | Axle loading,unladen front/rear | kg | 670/920 | 710/970 | 780/960 |
Types,Chassis | |||||
3.1 | Tyre type driving wheels/loading wheels | PU | PU | PU | |
3.2 | Tyre size,front(diameter×width) | mm | Φ250×120 | Φ250×120 | Φ250×120 |
3.3 | Tyre size ,rear(diameter×width) | mm | Φ250×75 | Φ250×75 | Φ250×75 |
3.5 | Wheels, number driving,caster/loading (x=drive wheels) | 1x,0/2 | 1x,0/2 | 1x,0/2 | |
3.6 | Tread,front | b11 (mm) | 869 | 869 | 869 |
3.7 | Thread,rear | mm | 0 | 0 | 0 |
Dimensions | |||||
4.1 | Mast/fork carriage tilt, forward/backward | a/b (°) | 2/5 | 2/5 | 2/5 |
4.2 | Height,mast lowered | h1 (mm) | 1995 | 1995 | 1995 |
4.3 | Free lift | h2 (mm) | 100 | 100 | 100 |
4.4 | Lift height | h3 (mm) | 3000 | 3000 | 3000 |
4.5 | Maximum height of gantry | h4 (mm) | 3985 | 3985 | 3985 |
4.6 | Lowered height | h13 (mm) | 35 | 35 | 35 |
4.8 | stand height | h7 (mm) | 127 | 127 | 127 |
4.9 | Height of tiller in drive position min./max. | h14 (mm) | 1105/1440 | 1105/1440 | 1105/1440 |
4.19 | Overall length | l1 (mm) | 2538 | 2538 | 2665 |
4.20 | Length to face of forks | l2 (mm) | 1588 | 1588 | 1715 |
4.21 | Overall width | b1 (mm) | 814/998 | 814/998 | 814/998 |
4.22 | Fork dimensions | s/ e/ l (mm) | 35/100/950 | 35/100/950 | 35/100/950 |
4.25 | Distance between fork-arms | b5 (mm) | 220-720 | 220-720 | 220-720 |
4.32 | Ground clearance, center of wheelbase | m2 (mm) | 86 | 86 | 86 |
4.33 | Aisle width for pallets 1000 × 1200 crossways | Ast (mm) | 2945 | 2945 | 3067 |
4.34 | Aisle width for pallets 800 × 1200 lengthways | Ast (mm) | 3055 | 3055 | 3177 |
4.35 | Turning radius | Wa (mm) | 1445 | 1445 | 1570 |
Performance data | |||||
5.1 | Travel speed, laden/ unladen | km/h | 5.2/5.5 | ||
5.2 | Lifting speed, laden/ unladen | m/ s | 0.042/0.83 | 0.042/0.83 | 0.057/0.79 |
5.3 | Lowering speed, laden/ unladen | m/ s | 0.117/0.49 | 0.117/0.49 | 0.060/0.57 |
5.7 | Max. gradeability, laden/unladen | % | 6/8 | 6/8 | 6/8 |
5.9 | Acceleration time with/without load | s | / | / | |
5.10 | Service brake type | Electromagnetic | |||
Electric-engine | |||||
6.1 | Drive motor rating S2 60 min | kW | 1.7 | ||
6.2 | Lift motor rating at S3 15% | kW | 2.2 | ||
6.4 | Battery voltage/nominal capacity K5 | V/Ah | 24/210 | ||
6.5 | Battery weight | kg | 210 | ||
The maximum allowed size battery | mm | 790/210/458 | |||
6.6 | Energy consumption acc. to VDI cycle | kW/h | - | ||
Addition data | |||||
8.1 | Type of drive control | AC | |||
Steering type | Electronic Assistance | ||||
8.4 | Sound pressure level at the driver’s ear | dB(A) | ≤75 |
