Description

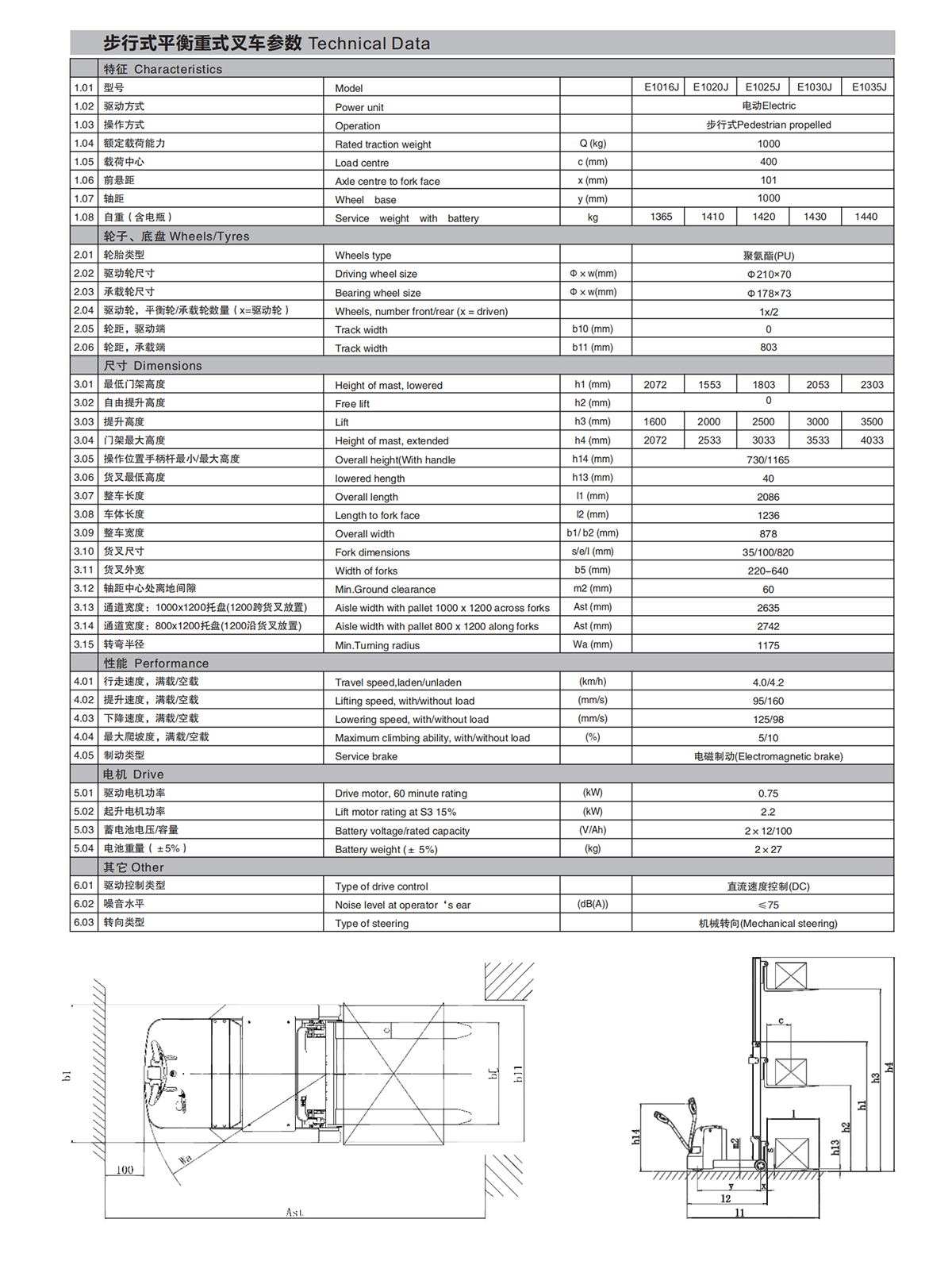

| Technical Data | |||||||
| 1.01 | Model | E1016J | E1020J | E1025J | E1030J | E1035J | |
| 1.02 | Power unit | Electric | |||||
| 1.03 | Operation | Pedestrian propelled | |||||
| 1.04 | Rated traction weight | Q(kg) | 1000 | ||||
| 1.05 | Load centre | c(mm | 400 | ||||
| 1.06 | Axle centre to fork face | x(mm) | 101 | ||||
| 1.07 | Wheel base | y (mm) | 1000 | ||||
| 1.08 | Service weight with battery | kg | 1365 | 1410 | 1420 | 1430 | 1440 |
| 2.01 | Wheels type | PU | |||||
| 2.02 | Driving wheel size | φxw(mm) | φ210×70 | ||||
| 2.03 | Bearing wheel size | φxw(mm) | φ178×73 | ||||
| 2.04 | Wheels,number front/rear (x =driven) | 1x/2 | |||||
| 2.05 | Track width | b10(mm) | 0 | ||||
| 2.06 | Track width | b11(mm) | 803 | ||||
| 3.01 | Height of mast,lowered | h1(mm) | 2072 | 1553 | 1803 | 2053 | 2303 |
| 3.02 | Free lift | h2(mm) | 0 | ||||
| 3.03 | Lift | h3(mm) | 1600 | 2000 | 2500 | 3000 | 3500 |
| 3.04 | Height of mast,extended | h4(mm) | 2072 | 2533 | 3033 | 3533 | 4033 |
| 3.05 | Overall height(With handle | h14(mm) | 730/1165 | ||||
| 3.06 | lowered hength | h13(mm) | 40 | ||||
| 3.07 | Overall length | l1(mm) | 2086 | ||||
| 3.08 | Length to fork face | l2(mm) | 1236 | ||||
| 3.09 | Overall width | b1/b2 (mm) | 878 | ||||
| 3.10 | Fork dimensions | s/e/l (mm) | 35/100/820 | ||||
| 3.11 | Width of forks | b5 (mm) | 220-640 | ||||
| 3.12 | Min.Ground clearance | m2 (mm) | 60 | ||||
| 3.13 | Aisle width with pallet 1000 x 1200 across forks | Ast (mm) | 2635 | ||||
| 3.14 | Aisle width with pallet 800 x 1200 along forks | Ast (mm) | 2742 | ||||
| 3.15 | Min.Tuming radius | Wa(mm) | 1175 | ||||
| 4.01 | Travel speed,laden/unladen | (km/h) | 4.0/4.2 | ||||
| 4.02 | Lifting speed,with/without load | (mm/s) | 95/160 | ||||
| 4.03 | Lowering speed,with/without load | (mm/s) | 125/98 | ||||
| 4.04 | Maximum climbing ability,with/without load | (%) | 5/10 | ||||
| 4.05 | Service brake | Electromagnetic Brake | |||||
| 5.01 | Drive motor,60 minute rating | (kW) | 0.75 | ||||
| 5.02 | Lift motor rating at S3 15% | (kW) | 2.2 | ||||
| 5.03 | Battery voltage/rated capacity | (V/Ah) | 2×12/100 | ||||
| 5.04 | Battery weight (±5%) | (kg) | 2×27 | ||||
| 6.01 | Type of drive contro | DC | |||||
| 6.02 | Noise level at operator 's ear | (dB(A)) | ≤75 | ||||
| 6.03 | Type of steering | Mechanical Steering | |||||
