Description

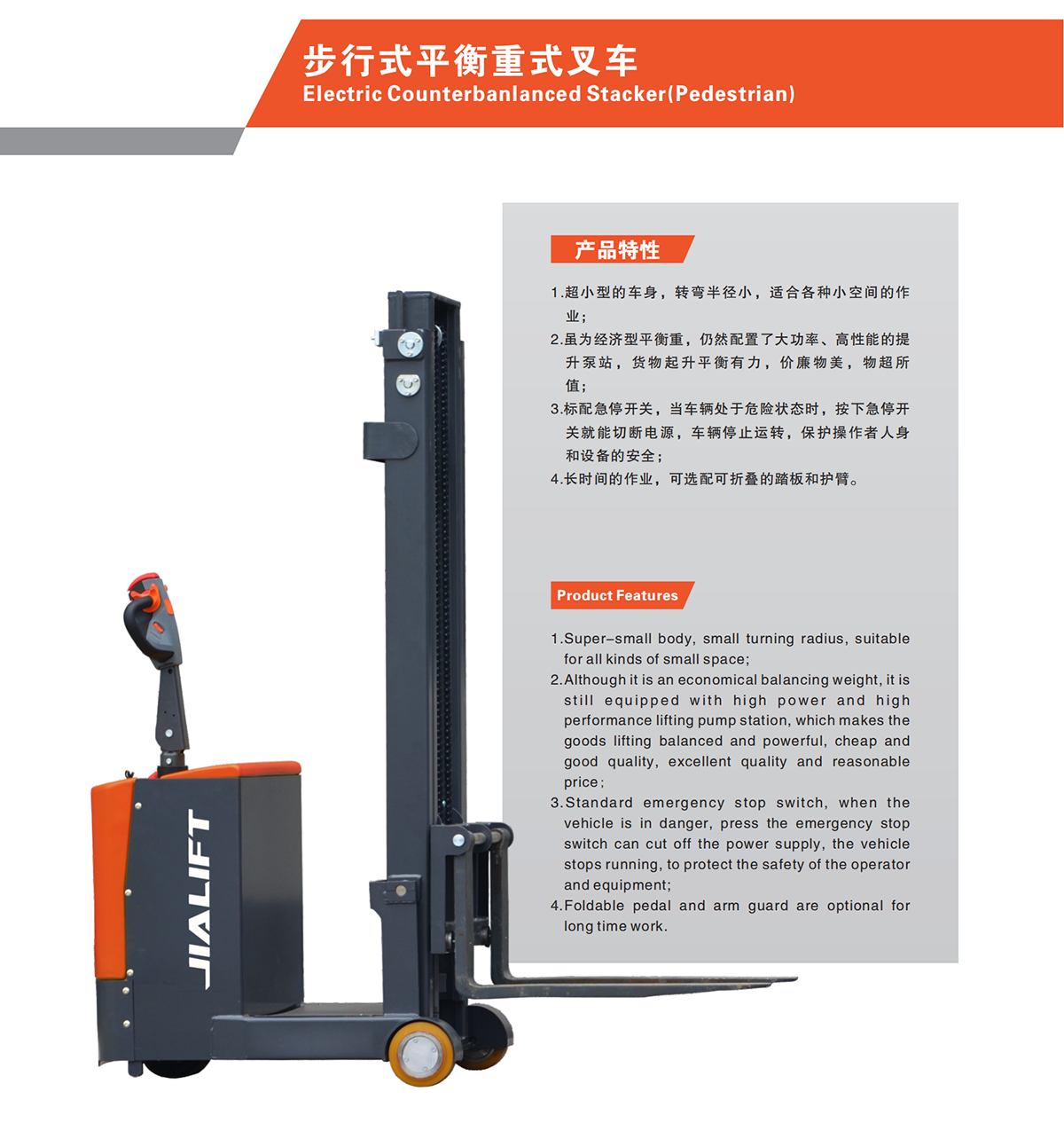

Product Features:
Super-small body,small turning radius, suitablefor all kinds of small space;
Although it is an economical balancing weight, it isstill equipped with high power and highperformance lifting pump station, which makes thegoods lifting balanced and powerful, cheap andgood quality, excellent quality and reasonableprice ;
Standard emergency stop switch, when thevehicle is in danger, press the emergency stopswitch can cut off the power supply, the vehiclestops running, to protect the safety of the operatorand equipment;4.Foldable pedal and arm guard are optional forlong time work.

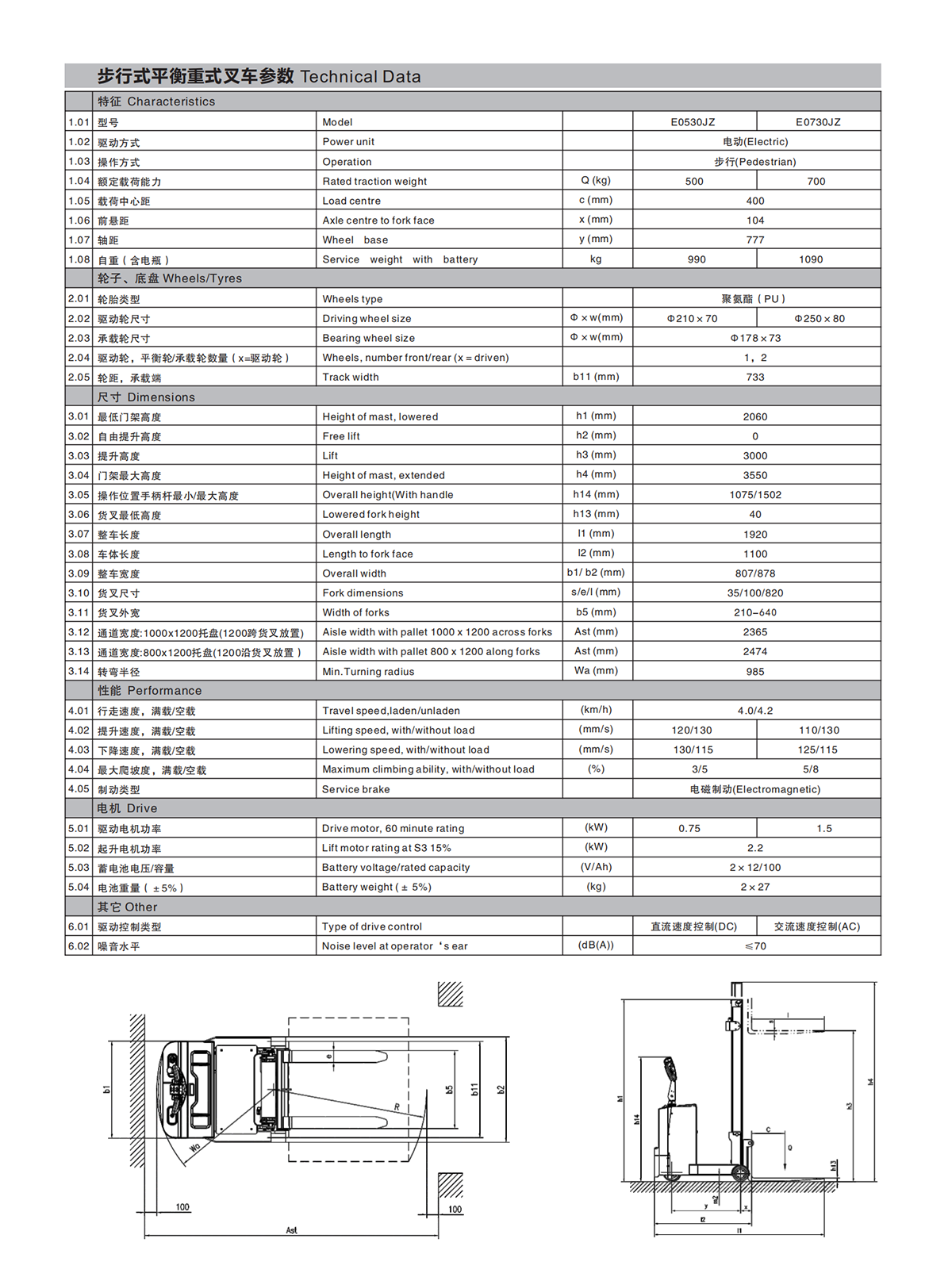

| E05-07JZ Technical Data | ||||
| distinguishing mark | ||||
| 1.1 | Manufacturer | |||
| 1.2 | Model designation | E0730JZ | ||
| 1.3 | Drive unit | |||
| 1.4 | Operator type | |||
| 1.5 | rated capacity | Q | kg | 700 |
| 1.6 | Load center distance | c | mm | 400 |
| 1.8 | Axle centre to fork face | x | mm | 125 |
| 1.9 | Wheelbase | y | mm | 777 |
| Weight | ||||
| 2.1 | Service weight （include battery） | kg | 1090 | |
| 2.2 | Axle loading, laden driving side/loading side | kg | / | |
| 2.3 | Axle loading, unladen driving side/loading side | kg | / | |
| Types,Chassis | ||||
| 3.1 | Tyre type driving wheels/loading wheels | |||
| 3.2 | Tyre size, driving wheels（diameter×width） | mm | Φ250×80 | |
| 3.3 | Tyre size, loading wheels（diameter×width） | mm | Φ178×73 | |
| 3.4 | Tyre size, caster wheels（diameter×width） | mm | / | |
| 3.5 | Wheels, number driving，caster/loading (x=drive wheels) | mm | 1x,0/2 | |
| 3.6 | Track width, front,driving side | b10 | mm | / |
| 3.7 | Track width,rear,loading side | b11 | mm | 803 |
| Dimensions | ||||
| 4.2 | Height of mast, lowered | h1 | mm | 2310 |
| 4.3 | Free lift | h2 | mm | / |
| 4.4 | Lift height | h3 | mm | 3000 |
| 4.9 | Height drawbar in driving position min./max. | h14 | mm | 1075/1502 |
| 4.15 | Lowered height | h13 | mm | 40 |
| 4.19 | Overall length | l1 | mm | 1920 |
| 4.20 | Length to face of forks | l2 | mm | 1100 |
| 4.21 | Overall width | b1/ b2 | mm | 808/878 |
| 4.22 | Fork dimensions | s/ e/ l | mm | 35/100/820 |
| 4.25 | Distance between fork-arms | b5 | mm | 210-640 |
| 4.32 | Ground clearance, center of wheelbase | m2 | mm | 75 |
| 4.34.1 | Aisle width for pallets 1000 × 1200 crossways | Ast | mm | 2470 |
| 4.34.2 | Aisle width for pallets 800 × 1200 lengthways | Ast | mm | 2580 |
| 4.35 | Turning radius | Wa | mm | 1000 |
| Performance data | ||||
| 5.1 | Travel speed, laden/ unladen | km/h | 4.0/4.2 | |
| 5.2 | Lifting speed, laden/ unladen | m/ s | 0.110/0.130 | |
| 5.3 | Lowering speed, laden/ unladen | m/ s | 0.125/0.115 | |
| 5.8 | Max. gradeability, laden/unladen | 5/8 | ||
| 5.9 | Acceleration time with/without load | |||
| 5.10 | Service brake type | Electromagnetic | ||
| Electric-engine | ||||
| 6.1 | Drive motor rating S2 60 min | kW | 1.5 | |
| 6.2 | Lift motor rating at S3 15% | kW | 2.2 | |
| 6.3 | The maximum allowed size battery | mm | 260×169×215 | |
| 6.4 | Battery voltage/nominal capacity K5 | 2x12V/100AH | ||
| 6.5 | Battery weight | kg | 2×27 | |
| 6.6 | Energy consumption acc. to VDI cycle | kW/h | ||
| Addition data | ||||
| 8.1 | Type of drive control | AC | ||
| 10.7 | Sound pressure level at the driver’s ear | dB(A) | ≤70 | |
