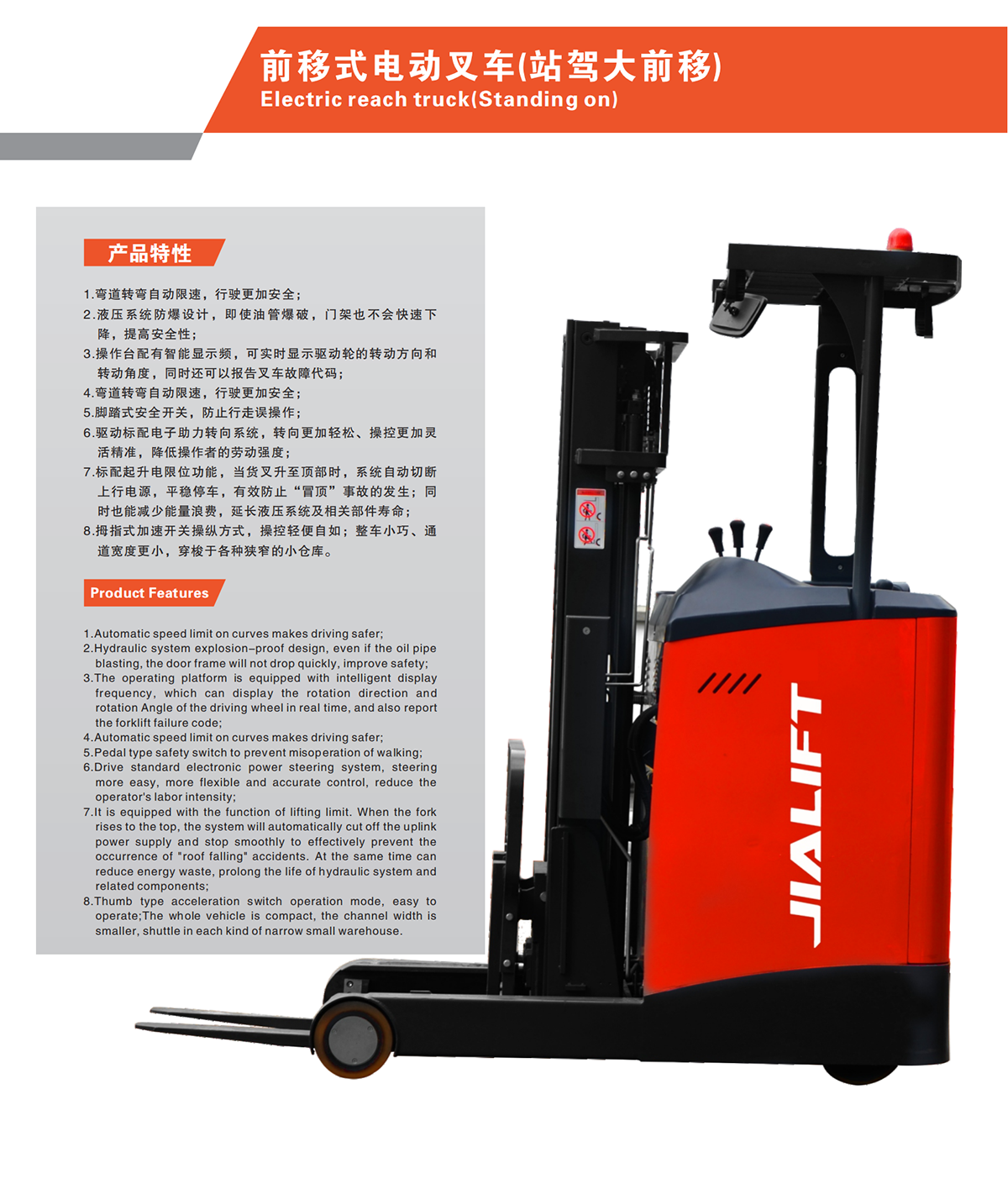

Automatic speed limit on curves makes driving safer;
Hydraulic system explosion-proof design, even if the oil pipeblasting, the door frame will not drop quickly, improve safety;
The operating platform is equipped with intelligent displayfrequency, which can display the rotation direction androtation Angle of the driving wheel in real time, and also reportthe forklift failure code;
Automatic speed limit on curves makes driving safer;
Pedal type safety switch to prevent misoperation of walking;
Drive standard electronic power steering system, steeringmore easy, more flexible and accurate control, reduce theoperator's labor intensity;
lt is equipped with the function of lifting limit. When the forkrises to the top, the system will automatically cut off the uplinkpower supply and stop smoothly to effectively prevent theoccurrence of "roof falling" accidents. At the same time canreduce energy waste, prolong the life of hydraulic system andrelated components;
humb type acceleration switch operation mode, easy tooperate;The whole vehicle is compact, the channel width issmaller,shuttle in each kind of narrow small warehouse.

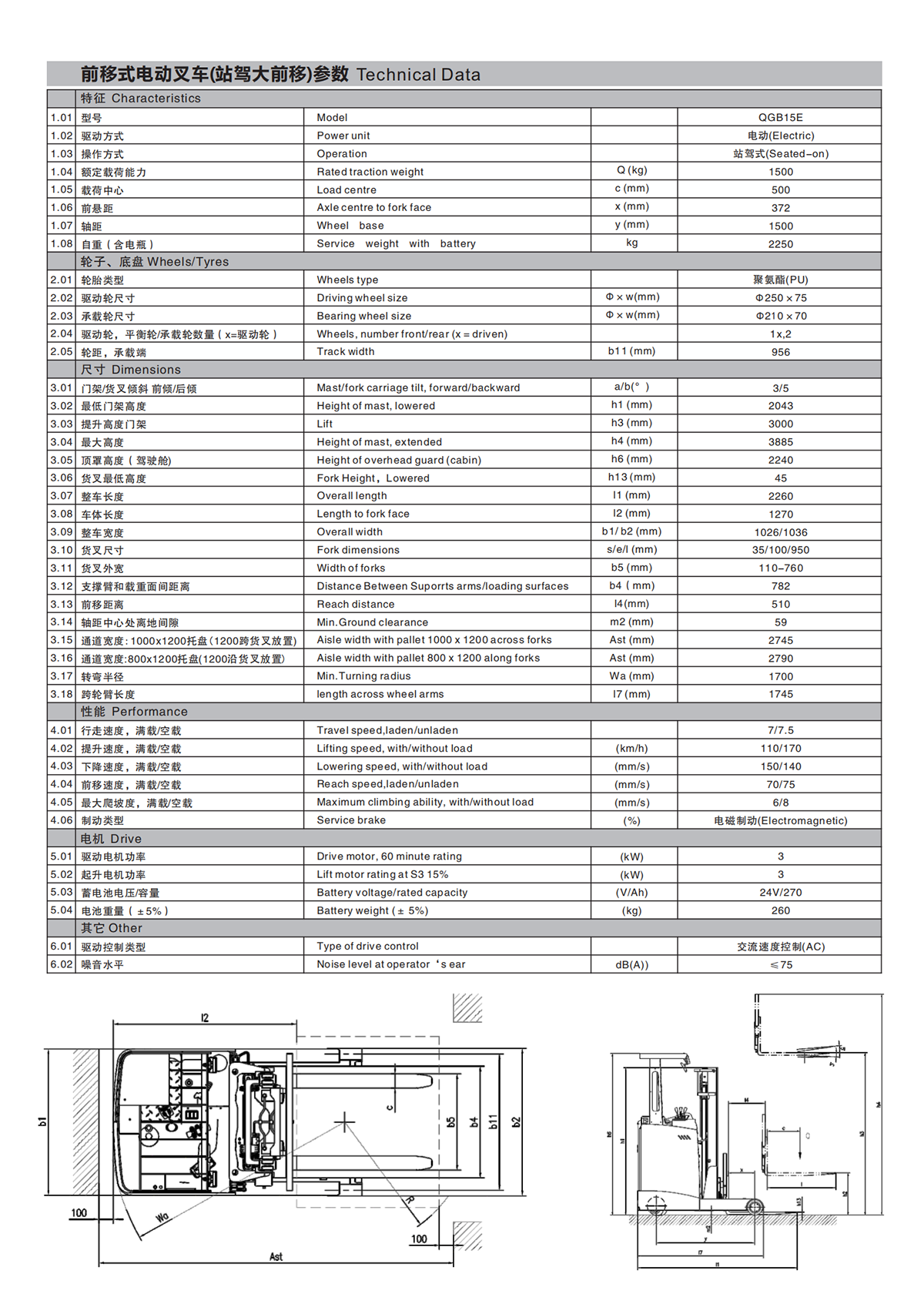

| Technical Data | |||
| Characteristics | |||
| 1.01 | Model | QGB15E | |
| 1.02 | Power unit | Electric | |
| 1.03 | Operation | Seated-on | |
| 1.04 | Rated traction weight | Q(kg) | 1500 |
| 1.05 | Load centre | c(mm) | 500 |
| 1.06 | Axle centre to fork face | x(mm) | 372 |
| 1.07 | Wheel base | y(mm) | 1500 |
| 1.08 | Service weight with battery | kg | 2250 |
| Wheels/Tyres | |||
| 2.01 | Wheels type | PU | |
| 2.02 | Driving wheel size | φ×w(mm) | φ250×75 |
| 2.03 | Bearing wheel size | φxw(mm) | φ210×70 |
| 2.04 | Wheels,number front/rear (x =driven) | 1x,2 | |
| 2.05 | Track width | b11(mm) | 956 |
| Dimensions | |||
| 3.01 | Mast/fork carriage tilt,forward/backward | a/b(°) | 3/5 |
| 3.02 | Height of mast,lowered | h1(mm) | 2043 |
| 3.03 | Lift | h3(mm) | 3000 |
| 3.04 | Height of mast,extended | h4(mm) | 3885 |
| 3.05 | Height of overhead guard (cabin) | h6(mm) | 2240 |
| 3.06 | Fork Height,Lowered | h13(mm) | 45 |
| 3.07 | Overall length | 11(mm) | 2260 |
| 3.08 | Length to fork face | 12(mm | 1270 |
| 3.09 | Overall width | b1/b2 (mm) | 1026/1036 |
| 3.10 | Fork dimensions | s/e/l(mm) | 35/100/950 |
| 3.11 | Width of forks | b5(mm) | 110-760 |
| 3.12 | Distance Between Suporrts arms/loading surfaces | b4(mm) | 782 |
| 3.13 | Beach distance | l4(mm) | 510 |
| 3.14 | Min Ground clearance | m2(mm) | 59 |
| 3.15 | Aisle width with pallet 1000 x1200 across forks | Ast (mm) | 2745 |
| 3.16 | Aisle width with pallet 800 x 1200 along forks | Ast (mm) | 2790 |
| 3.17 | Min.Turning radius | Wa(mm | 1700 |
| 3.18 | ength across wheel arms | 17(mm) | 1745 |
| Performance | |||
| 4.01 | Travel speed,laden/unladen | 7/7.5 | |
| 4.02 | Lifting speed,with/without load | (km/h) | 110/170 |
| 4.03 | Lowering speed,with/without load | (mm/s) | 150/140 |
| 4.04 | Reach speed,laden/unladen | (mm/s) | 70/75 |
| 4.05 | Maximum climbing ability,with/without load | (mm/s) | 6/8 |
| 4.06 | Service brake | (%) | Electromagnetic |
| Drive | |||
| 5.01 | Drive motor,60 minute rating | (kW) | 3 |
| 5.02 | Lift motor rating at S315% | (kW) | 3 |
| 5.03 | Battery voltage/rated capacity | (V/Ah) | 24V/270 |
| 5.04 | Battery weight (±5%) | (kg) | 260 |
| Other | |||
| 6.01 | Type of drive control | AC | |
| 6.02 | Noise level at operator's ear | dB(A)) | ≤75 |
