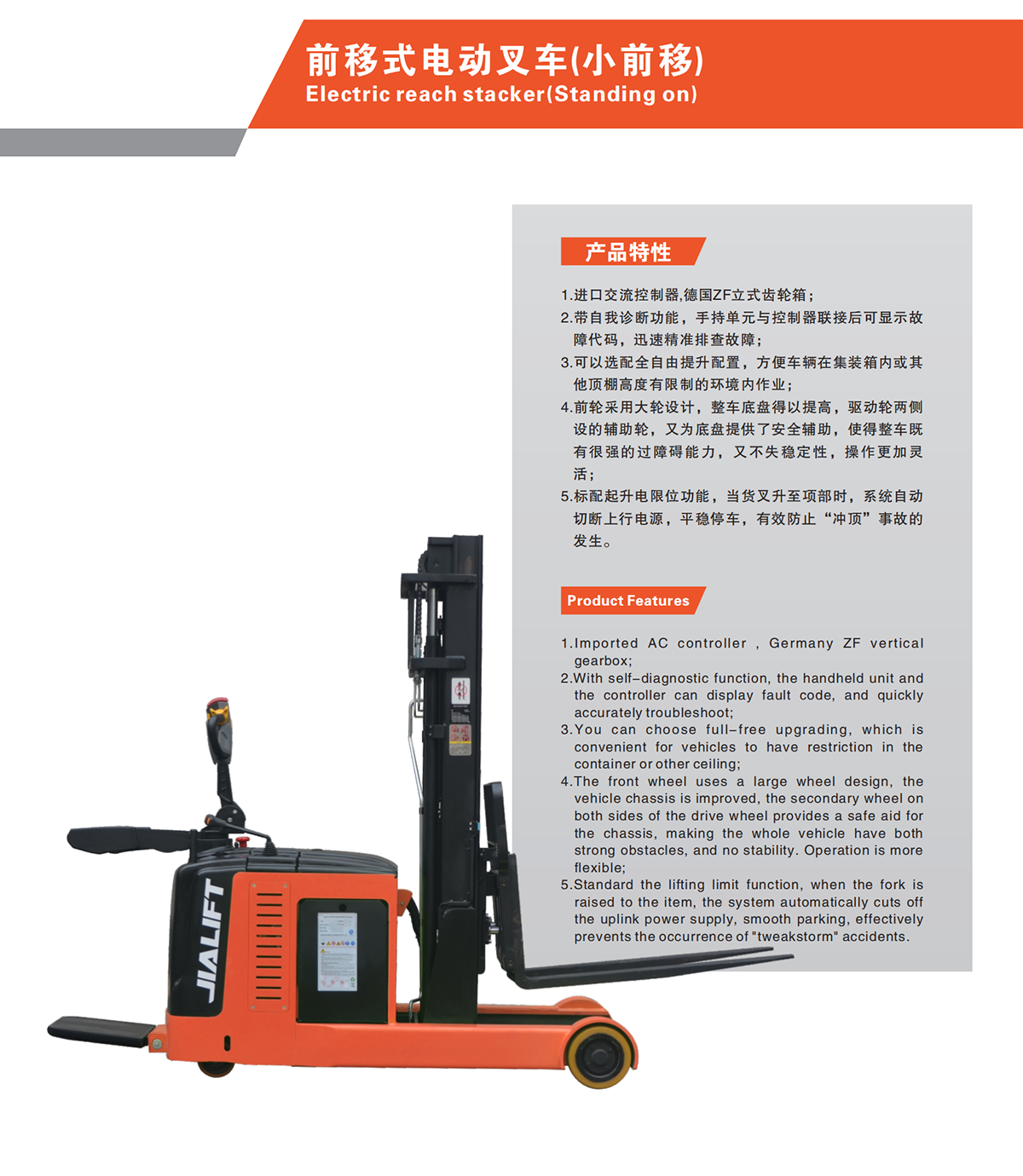

1.lmported AC controller ,Germany ZF verticalgearbox;
2.With self-diagnostic function, the handheld unit andthe controller can display fault code, and quicklyaccurately troubleshoot;
3.You can choose full-free upgrading, which isconvenient for vehicles to have restriction in thecontainer or other ceiling;
4.The front wheel uses a large wheel design, thevehicle chassis is improved, the secondary wheel onboth sides of the drive wheel provides a safe aid forthe chassis, making the whole vehicle have bothstrong obstacles, and no stability. Operation is moreflexible:
5.Standard the lifting limit function, when the fork israised to the item, the system automatically cuts offthe uplink power supply, smooth parking, effectivelyprevents the occurrence of"tweakstorm" accidents

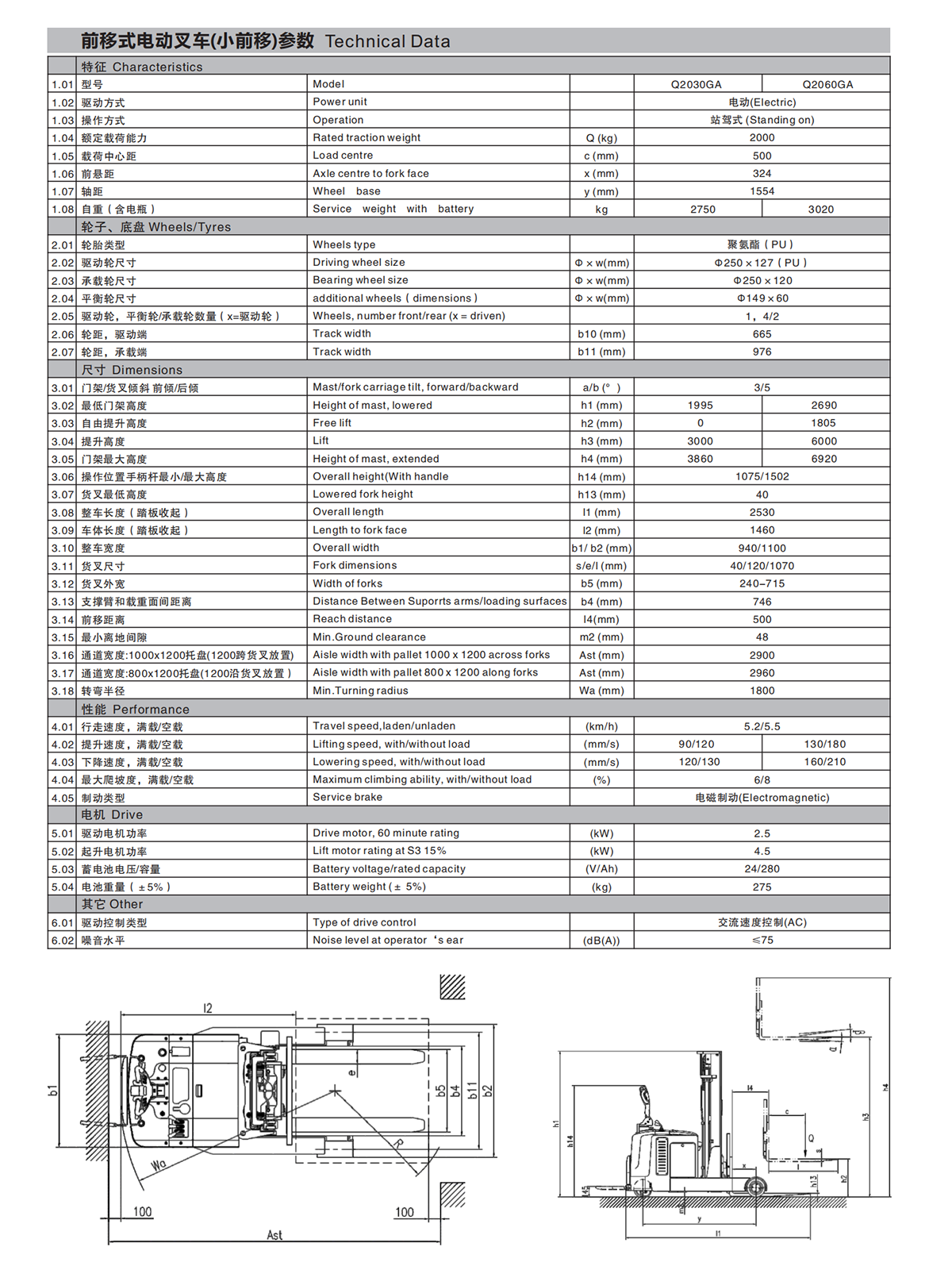

Technical data:
| Q20GA | ||||
| distinguishing mark | ||||
| 1.1 | Manufacturer | Jialift | ||
| 1.2 | Model designation | Q20GA | ||
| 1.3 | Drive unit | Electric | ||
| 1.4 | Operator type | Standing | ||
| 1.5 | rated capacity | Q | kg | 2000 |
| 1.6 | Load center distance | c | mm | 500 |
| 1.7 | Axle centre to fork face | x | mm | 330/263(triplex) |
| 1.8 | Wheelbase | y | mm | 1554 |
| Weight | ||||
| 2.1 | Service weight （include battery） | kg | 2900 | |
| 2.2 | Axle loading ,Pallet fork forward,unladen front/rear | kg | 1430/1590 | |
| 2.3 | Axle loading ,Pallet fork back,unladen front/rear | kg | 1840/1060 | |
| 2.4 | Axle loading ,Pallet fork forward,laden front/rear | kg | 446/4454 | |
| 2.5 | Axle loading ,Pallet fork back,laden front/rear | kg | 1010/3890 | |
| Types,Chassis | ||||
| 3.1 | Tyre type driving wheels/loading wheels | PU | ||
| 3.2 | Tyre size, driving wheels（diameter×width） | mm | Ф250x127 | |
| 3.3 | Tyre size, loading wheels（diameter×width） | mm | Ф250x120 | |
| 3.4 | Tyre size, caster wheels（diameter×width） | mm | Ф149x60 | |
| 3.5 | Wheels, number driving，caster/loading (x=drive wheels) | mm | 1x,4/2 | |
| 3.6 | Track width, front,driving side | b10 | mm | 665 |
| 3.7 | Track width,rear,loading side | b11 | mm | 976 |
| Dimensions | ||||
| 4.1 | Mast/fork carriage tilt, forward/backward | a/b | (°) | 3/5 |
| 4.2 | Height of mast, lowered | h1 | mm | 2690 |
| 4.3 | Free lift | h2 | mm | 1805 |
| 4.4 | Lift height | h3 | mm | 6000 |
| 4.5 | Height drawbar in driving position min./max. | h14 | mm | 1075/1502 |
| 4.6 | Lowered height | h13 | mm | 40 |
| 4.7 | Overall length | l1 | mm | 2590 |
| 4.8 | Length to face of forks | l2 | mm | 1521 |
| 4.9 | Overall width | b1/ b2 | mm | 940/1106 |
| 4.10 | Fork dimensions | s/ e/ l | mm | 40/120/1070 |
| 4.11 | Distance between fork-arms | b5 | mm | 300-600 |
| 4.12 | Ground clearance, center of wheelbase | m2 | mm | 52 |
| 4.13 | Reach distance | l4 | mm | 570 |
| 4.14 | Aisle width for pallets 1000 × 1200 crossways | Ast | mm | 2900/3320 |
| 4.15 | Aisle width for pallets 800 × 1200 lengthways | Ast | mm | 2960/3380 |
| 4.16 | Turning radius | Wa | mm | 1800/2220 |
| Performance data | ||||
| 5.1 | Travel speed, laden/ unladen | km/h | 5.2/5.5 | |
| 5.2 | Lifting speed, laden/ unladen | m/ s | 0.116/0.17 | |
| 5.3 | Lowering speed, laden/ unladen | m/ s | 0.165/0.145 | |
| 5.4 | Reach speed,laden/unladen | m/ s | 0.08/0.085 | |
| 5.5 | Max. gradeability, laden/unladen | % | 6/8 | |
| 5.6 | Acceleration time with/without load | s | － | |
| 5.7 | Service brake type | Electromagnetic barke | ||
| Electric-engine | ||||
| 6.1 | Drive motor rating S2 60 min | kW | 3.0 | |
| 6.2 | Lift motor rating at S3 15% | kW | 4.5 | |
| 6.3 | The maximum allowed size battery | mm | 940x340x445 | |
| 6.4 | Battery voltage/nominal capacity K5 | 24/280 | ||
| 6.5 | Battery weight | kg | 275 | |
| 6.6 | Energy consumption acc. to VDI cycle | kW/h | － | |
| Addition data | ||||
| 8.1 | Type of drive control | AC | ||
| 8.2 | Steering type | electric power steering | ||
| 8.3 | Sound pressure level at the driver’s ear | dB(A) | ≤70 | |
