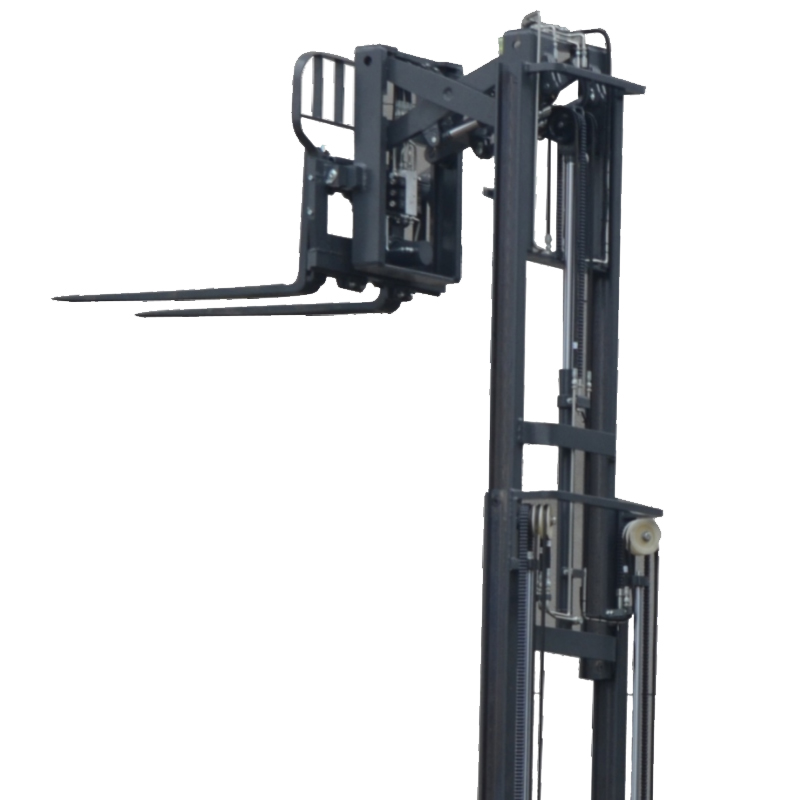

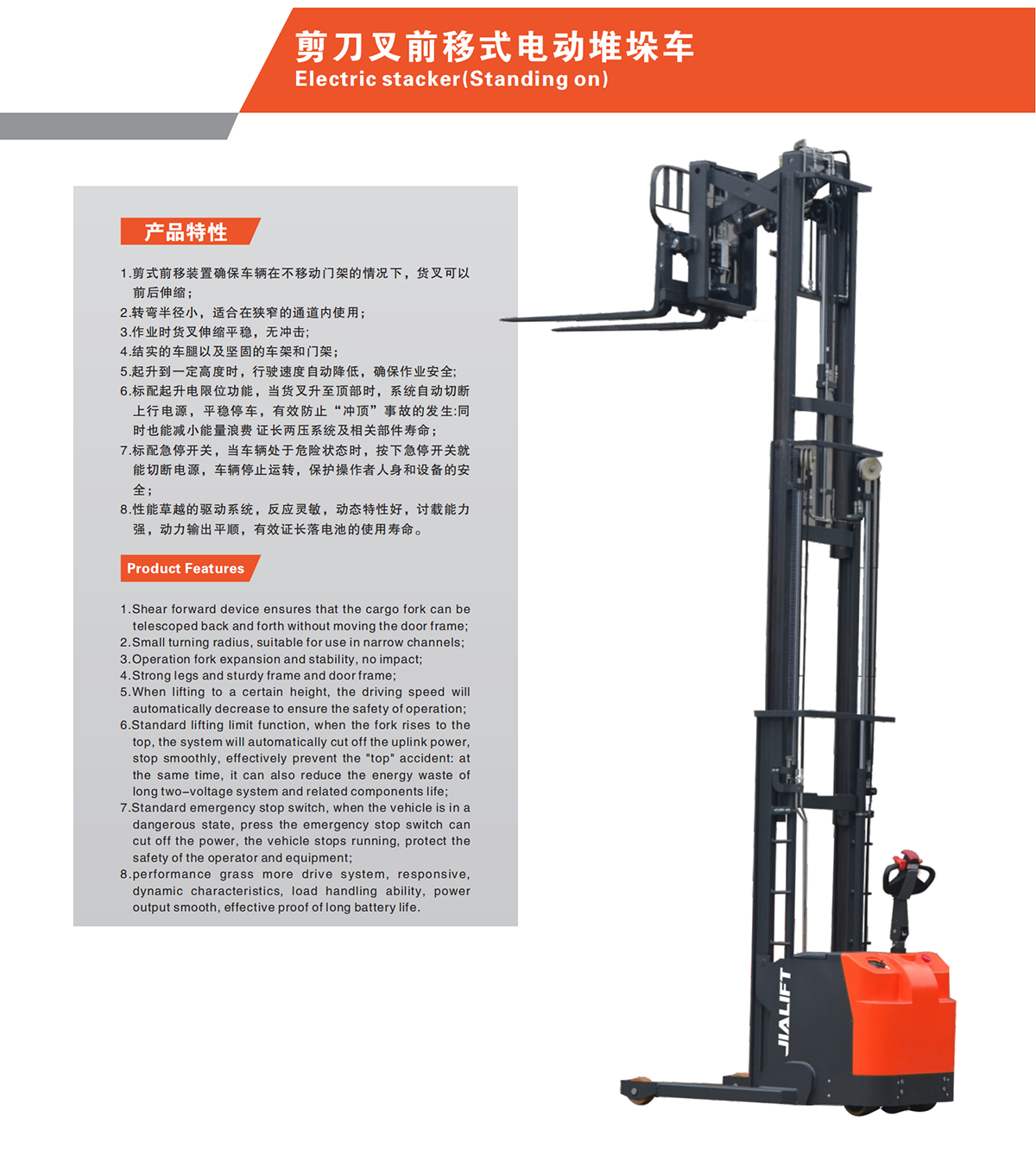

Shear forward device ensures that the cargo fork can betelescoped back and forth without moving the door frame;
Small turning radius, suitable for use in narrow channels,
0peration fork expansion and stability, no impact;
Strong legs and sturdy frame and door frame;
When lifting to a certain height, the driving speed willautomatically decrease to ensure the safety of operation;
Standard lifting limit function, when the fork rises to thetop, the system will automatically cut off the uplink power,stop smoothly, effectively prevent the "top" accident: atthe same time, it can also reduce the energy waste oflong two-voltage system and related components life;7.Standard emergency stop switch, when the vehicle is in adangerous state, press the emergency stop switch cancut off the power, the vehicle stops running, protect thesafety of the operator and equipment;8.performance grass more drive system, responsive.dynamic characteristics, load handling ability, poweroutput smooth, effective proof of long battery life.

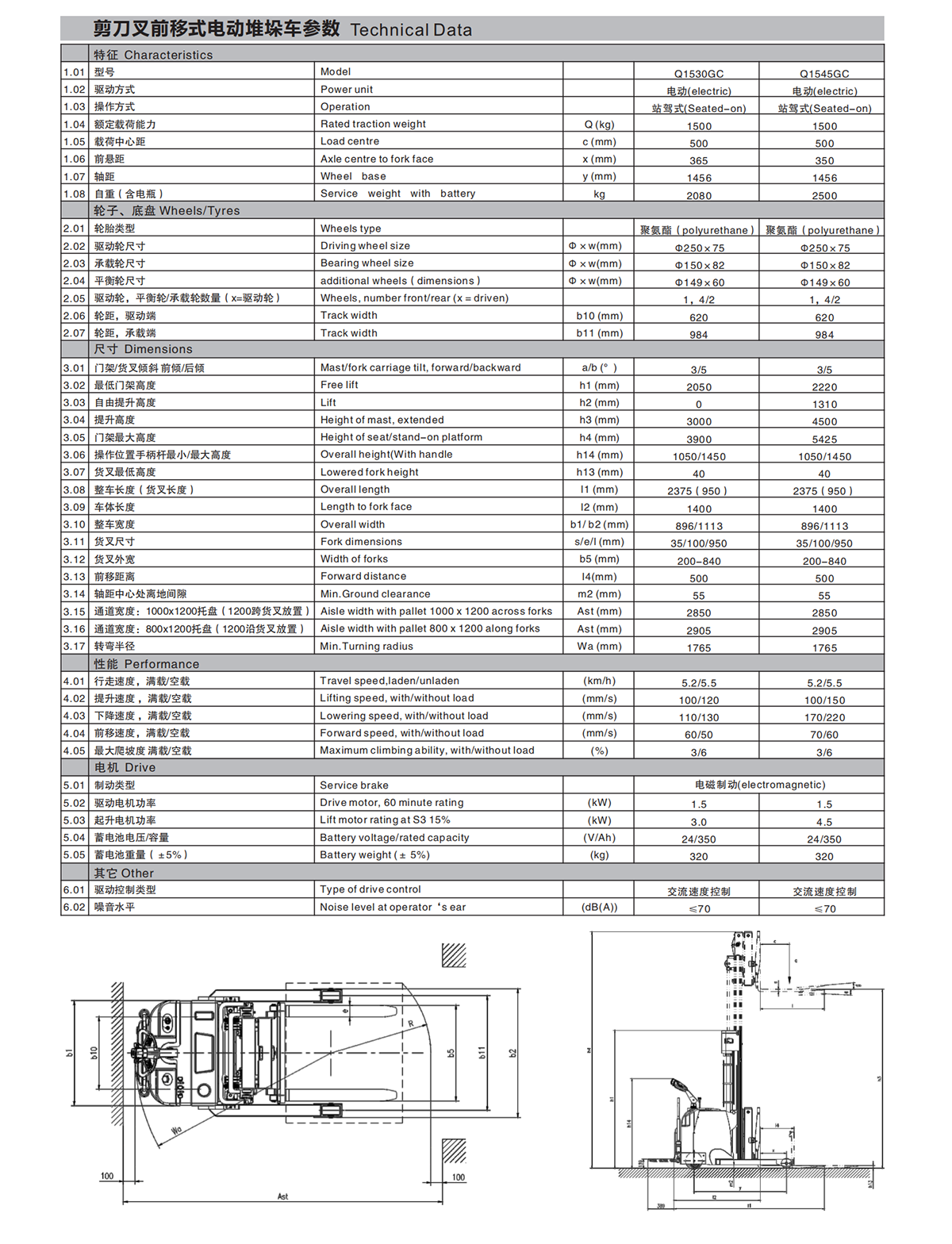

Technical data:
| Q15GC | ||||
| Distinguishing mark | ||||
| 1.1 | Manufacturer | Jialift | ||
| 1.2 | Model designation | Q15GC | ||
| 1.3 | Drive unit | Electric | ||
| 1.4 | Operator type | Standing | ||
| 1.5 | rated capacity | Q | kg | 1500 |
| 1.6 | Load center distance | c | mm | 500 |
| 1.7 | Axle centre to fork face | x | mm | duplex 265 triplex 350 |
| 1.8 | Wheelbase | y | mm | 1370/1456 |
| Weight | ||||
| 2.1 | Service weight （include battery） | kg | 2360/2450 | |
| 2.2 | Axle loading ,Pallet fork forward,unladen front/rear | kg | 1450/900 | |
| 2.3 | Axle loading ,Pallet fork back,unladen front/rear | kg | 1550/800 | |
| 2.4 | Axle loading ,Pallet fork forward,laden front/rear | kg | 660/3200 | |
| 2.5 | Axle loading ,Pallet fork back,laden front/rear | kg | 1340/2520 | |
| Types,Chassis | ||||
| 3.1 | Tyre type driving wheels/loading wheels | PU | ||
| 3.2 | Tyre size, driving wheels（diameter×width） | mm | Φ250×75 | |
| 3.3 | Tyre size, loading wheels（diameter×width） | mm | Φ150×82 | |
| 3.4 | Tyre size, caster wheels（diameter×width） | mm | Φ149×60 | |
| 3.5 | Wheels, number driving，caster/loading (x=drive wheels) | mm | 1x,4/2 | |
| 3.6 | Track width, front,driving side | b10 | mm | 620 |
| 3.7 | Track width,rear,loading side | b11 | mm | 984 |
| Dimensions | ||||
| 4.1 | Mast/fork carriage tilt, forward/backward | a/b | (°) | 3/5 |
| 4.2 | Height of mast, lowered | h1 | mm | 2220 |
| 4.3 | Free lift | h2 | mm | 1310 |
| 4.4 | Lift height | h3 | mm | 4500 |
| 4.5 | Height drawbar in driving position min./max. | h14 | mm | 1050(1450) |
| 4.6 | Lowered height | h13 | mm | 40 |
| 4.7 | Overall length | l1 | mm | 2250(2336) |
| 4.8 | Length to face of forks | l2 | mm | 1300(1386) |
| 4.9 | Overall width | b1/ b2 | mm | 896/1113 |
| 4.10 | Fork dimensions | s/ e/ l | mm | 35/100/950 |
| 4.11 | Distance between fork-arms | b5 | mm | 300-585 |
| 4.12 | Ground clearance, center of wheelbase | m2 | mm | 55 |
| 4.13 | Reach distance | l4 | mm | 500 |
| 4.14 | Aisle width for pallets 1000 × 1200 crossways | Ast | mm | 2755(2840) |
| 4.15 | Aisle width for pallets 800 × 1200 lengthways | Ast | mm | 2805(2890) |
| 4.16 | Turning radius | Wa | mm | 1685(1775) |
| Performance data | ||||
| 5.1 | Travel speed, laden/ unladen | km/h | 5.2/5.5 | |
| 5.2 | Lifting speed, laden/ unladen | m/ s | 0.15/0.2 | |
| 5.3 | Lowering speed, laden/ unladen | m/ s | 0.1/0.11 | |
| 5.4 | Reach speed,laden/unladen | m/ s | 0.07/0.06 | |
| 5.5 | Max. gradeability, laden/unladen | % | 3/6 | |
| 5.6 | Acceleration time with/without load | s | － | |
| 5.7 | Service brake type | electromagnetic brake | ||
| Electric-engine | ||||
| 6.1 | Drive motor rating S2 60 min | kW | 1.5 | |
| 6.2 | Lift motor rating at S3 15% | kW | 4.5 | |
| 6.3 | The maximum allowed size battery | mm | 790x210x480 790x296x480 | |
| 6.4 | Battery voltage/nominal capacity K5 | 24/240 | ||
| 6.5 | Battery weight | kg | 230(320) | |
| 6.6 | Energy consumption acc. to VDI cycle | kW/h | － | |
| Addition data | ||||
| 8.1 | Type of drive control | AC | ||
| 8.2 | Steering type | Electric power steering | ||
| 8.3 | Sound pressure level at the driver’s ear | dB(A) | ≤70 | |
