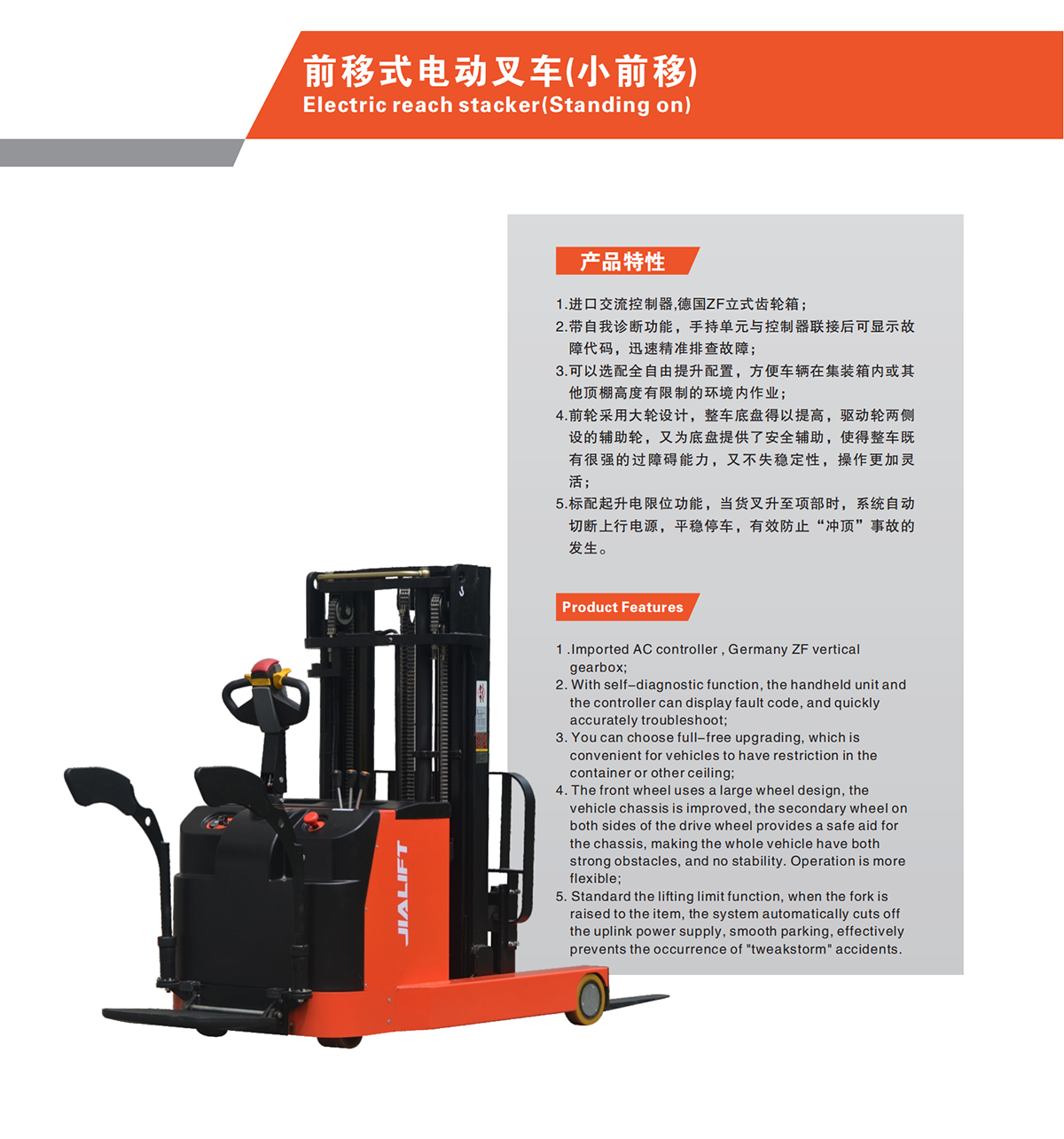

1 .lmported AC controller ,Germany ZF verticalgearbox;
2.With self-diagnostic function, the handheld unit andthe controller can display fault code, and quicklyaccurately troubleshoot;
3. You can choose full-free upgrading, which isconvenient for vehicles to have restriction in thecontainer or other ceiling;
4. The front wheel uses a large wheel design, thevehicle chassisisimproved, the secondary wheel onboth sides of the drive wheel provides a safe aid forthe chassis, making the whole vehicle have bothstrong obstacles, and no stability. Operation is moreflexible;
5. Standard the lifting limit function, when the fork israised to the item, the system automatically cuts offthe uplink power supply, smooth parking, effectivelyprevents the occurrence of "tweakstorm" accidents.
Technical data:
| Technical Data | |||||
| Characteristics | |||||
| 1.01 | Model | Q1516D | Q1530D | Q1545D | |
| 1.02 | Power unit | Electric | |||
| 1.03 | Operation | Standing on | |||
| 1.04 | Rated traction weight | Q(kg) | 1300 | ||
| 1.05 | Load centre | c(mm) | 500 | ||
| 1.06 | Axle centre to fork face | x(mm) | 367 | 356 | 368 |
| 1.07 | Wheel base | y(mm) | 1354 | ||
| 1.08 | Service weight with battery | kg | 1745 | 2010 | 2210 |
| Wheels/Tyres | |||||
| 2.01 | Wheels type | PU | |||
| 2.02 | Driving wheel size | φ×w(mm) | φ230×75(PU) | ||
| 2.03 | Bearing wheel size | φ×w(mm) | φ210×70 | ||
| 2.04 | Additional wheels(dimensions) | φxw(mm) | φ149×60 | ||
| 2.05 | Wheels,number front/rear (x =driven) | 1,4/2 | |||
| 2.06 | Track width | b10(mm) | 620 | ||
| 2.07 | Track width | b11(mm) | 960 | ||
| Dimensions | |||||
| 3.01 | Mast/fork carriage tilt,forward/backward | a/b(°) | 3/5 | ||
| 3.02 | Height of mast,lowered | h1(mm) | 2155 | 2130 | 2095 |
| 3.03 | Free lift | h2(mm) | 0 | 0 | 1067 |
| 3.04 | Lift | h3(mm) | 1600 | 3000 | 4500 |
| 3.05 | Height of mast,extended | h4(mm) | 2535 | 4040 | 5512 |
| 3.06 | Overall height(With handle | h14(mm) | 1050/1450 | ||
| 3.07 | Fork Height,Lowered | h13(mm | 50 | ||
| 3.08 | Overall length | 11(mm) | 2252(950) | ||
| 3.09 | Length to fork face(fork length) | l2(mm) | 1265 | ||
| 3.10 | Overall width | b1/b2 (mm) | 896/1042 | ||
| 3.11 | Fork dimensions | s/e/l (mm) | 35/100/950(1150) | ||
| 3.12 | Width of forks | b5(mm) | 200-740 | ||
| 3.13 | Distance Between Suporrts arms/loading surfaces | b4(mm) | 786 | ||
| 3.14 | Reach distance | l4(mm) | 500 | ||
| 3.15 | Min.Ground clearance | m2(mm) | 44 | ||
| 3.16 | Aisle width with pallet 1000 x1200 across forks | Ast (mm) | 2750 | 2790 | 2750 |
| 3.17 | Aisle width with pallet 800x1200 along forks | Ast(mm) | 2800 | 2840 | 2800 |
| 3.18 | Min.Turning radius | Wa(mm | 1670 | ||
| 3.19 | Length across wheel arms | 17(mm) | 1767 | ||
| Performance | |||||
| 4.01 | Travel speed,laden/unladen | (km/h) | 5.2/5.5 | ||
| 4.02 | Lifting speed,with/without load | (mm/s) | 100/130 | 95/130 | 130/190 |
| 4.03 | Lowering speed,with/without load | (mm/s) | 100/100 | 100/100 | 130/120 |
| 4.04 | Maximum climbing ability,with/without load | (mm/s) | 6/8 | ||
| 4.05 | Service brake | (%) | Electromagnetic | ||
| D r ive | |||||
| 5.01 | Drive motor,60 minute rating | (kW) | 1.5 | ||
| 5.02 | Lift motor rating at S315% | (kW) | 3 | ||
| 5.03 | Battery voltage/rated capacity | (V/Ah | 24/270 | ||
| 5.04 | Battery weight (±5%) | (kg) | 260 | ||
| Other | |||||
| 6.01 | Type of drive control | AC | |||
| 6.02 | Noise level at operator 's ear | (dB(A)) | ≤70 | ||
